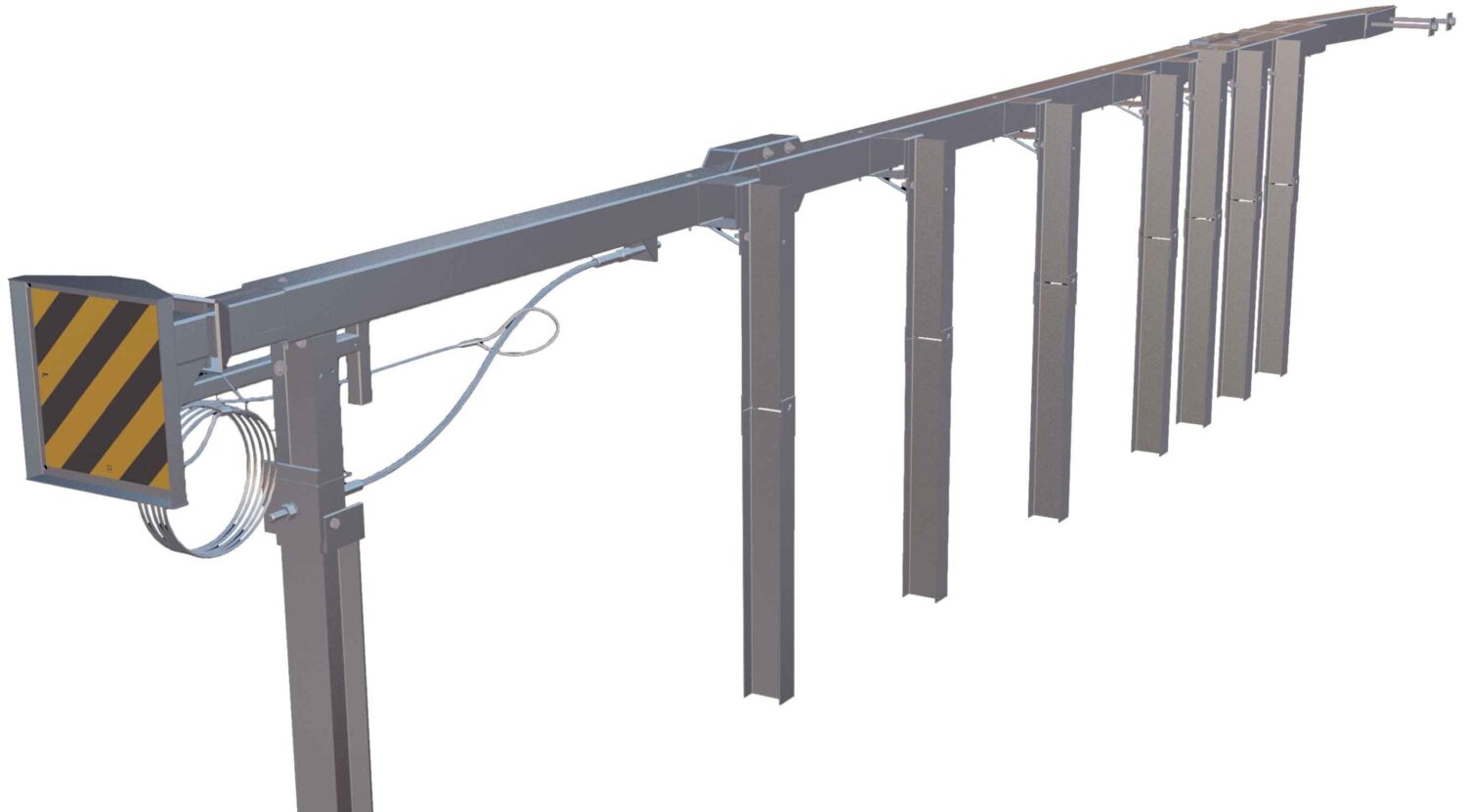

A BEAT Single Sided Crash Cushion Full System Includes:
| Item#: | Description: | Quantity: |

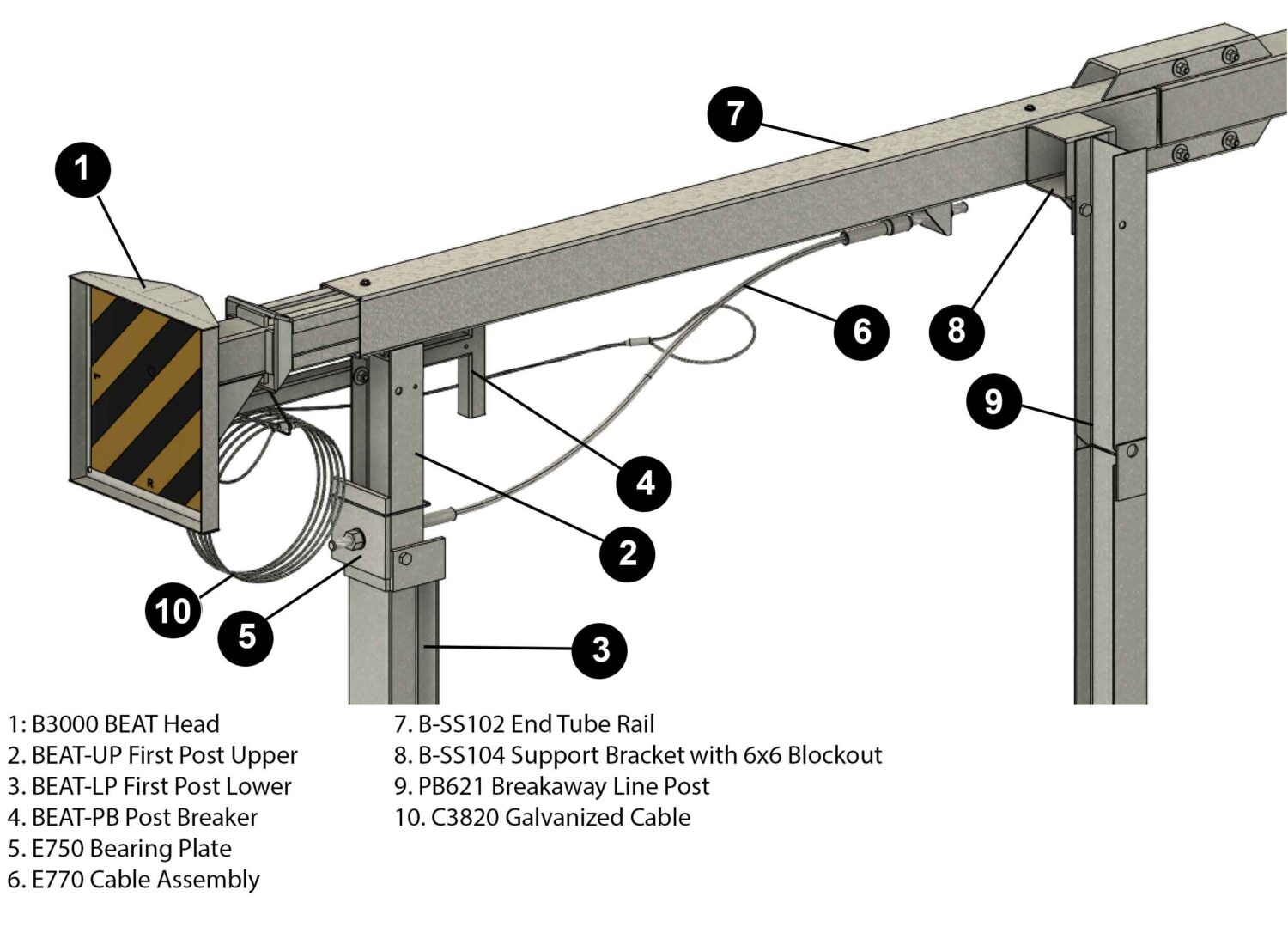

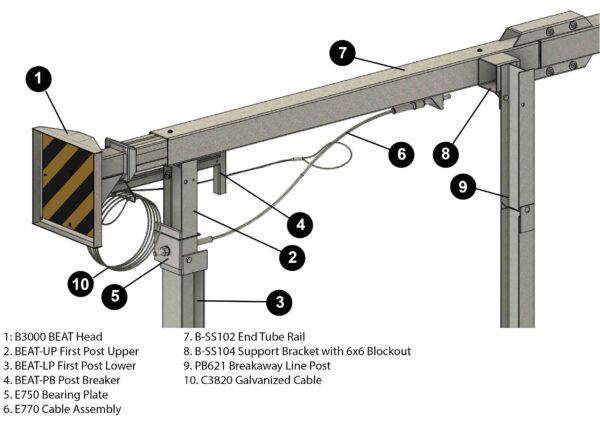

B3000 | BEAT Impact Head | 1 |
E3151 | Object Marker | 1 |
BEAT-UP | Upper End Post W6x9 x 1′-9 1/2″ LG. | 1 |
BEAT-LP | Lower End Post W6x15 x 8’0″ LG. | 1 |
BEAT-SB | Support Bracket 10ga.bent plate | 1 |
BEAT-PB | Post Breaker | 1 |
E750 | Bearing Plate – 5/8″ x 8″ x 8″ | 1 |
E770 | Cable Assembly | 1 |

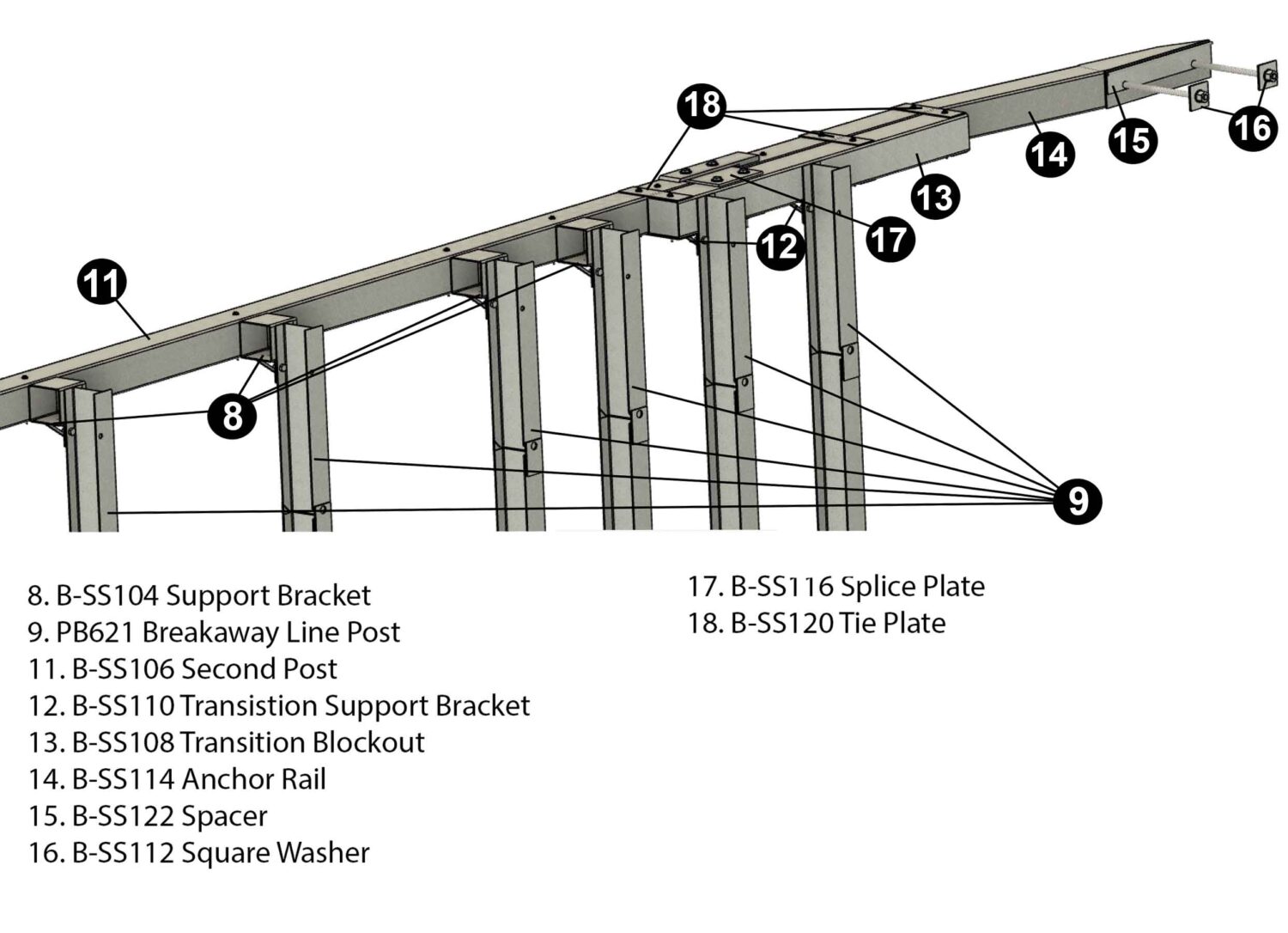

PB621 | Steel Breakaway Line Post | 7 |
B-SS102 | End Tube Rail TS 6x6x1/8 x 8′-0″ LG. | 1 |
B-SS104 | Support Bracket with Blockout TS 6x6x3/16 w/bent plt. | 5 |
B-SS106-16 | Second Rail TS 6x6x3/16–16′-2 1/2″ LG. | 1 |
B-SS108 | Transition Blockout TS 6x6x3/16–5′-6″ | 1 |
B-SS110 | Transition Support Bracket bent plate w/ gusset | 2 |
B-SS112 | 1″ Square Washer 4x4x1/4″ | 2 |
B-SS114 | Anchor Rail TS 6x6x3/16–8′-6 13/16″ LG. | 1 |
B-SS116 | Splice Plate 10x10x3/8″ plate | 2 |
B-SS120 | Tie Plate 11 1/2 x 3 1/2 x 3/16″ plate | 6 |
B-SS122 | Spacer | 1 |
BP-SC | End Section Splice Channel | 2 |
C3820 | 3/8 galvanized cable x 20′ | 1 |
| Hardware: | ||
B51607504A | 5/16″ X 7 1/2″ HEX HD. BOLT Gr.5 | 14 |
B140304 | 1/4″ X 3″ HEX HD BOLT | 1 |
B120204A | 1/2″ X 2″ HEX HD BOLT Gr.5 Full Thread | 1 |
B120504A | 1/2″ X 5″ HEX HD BOLT Gr.5 | 1 |
B580154 | 5/8″ X 1 1/2″ HEX HD BOLT Gr.2 | 7 |
B580204A | 5/8″ X 2″ HEX HD BOLT Gr.5 | 4 |
B580304A | 5/8″ X 3″ HEX HD BOLT Gr.5 | 1 |
B580604A | 5/8″ x 6″ HEX HD BOLT Gr. 5 | 4 |
B580804A | 5/8″ X 8″ HEX HD BOLT Gr.5 | 1 |
B580904A | 5/8″ X 9″ HEX HD BOLT Gr.5 | 4 |
B101604A | 1″ x 16 HEX HD BOLT GR.5 | 2 |
N0516 | 5/16″ HEX NUT | 14 |
N014 | 1/4″ HEX NUT | 1 |
N012 | 1/2″ HEX NUT | 2 |
N050 | 5/8″ DR NUT | 7 |
N055 | 5/8″ HEX NUT | 18 |
N100A | 1″ HEAVY HEX NUT Gr. 5 | 4 |
W0516 | 5/16″ WASHER | 28 |
W014 | 1/4″ WASHER | 1 |
W012 | 1/2″ WASHER | 2 |
W050 | 5/8″ WASHER | 33 |
W100A | 1″ HEAVE WASHER Gr. 5 | 4 |
CT-100ST | Cable Tie – Steel | 2 |
