Hardware required in the BEAT-SSCC system:
| Item#: | Description: | Quantity: |

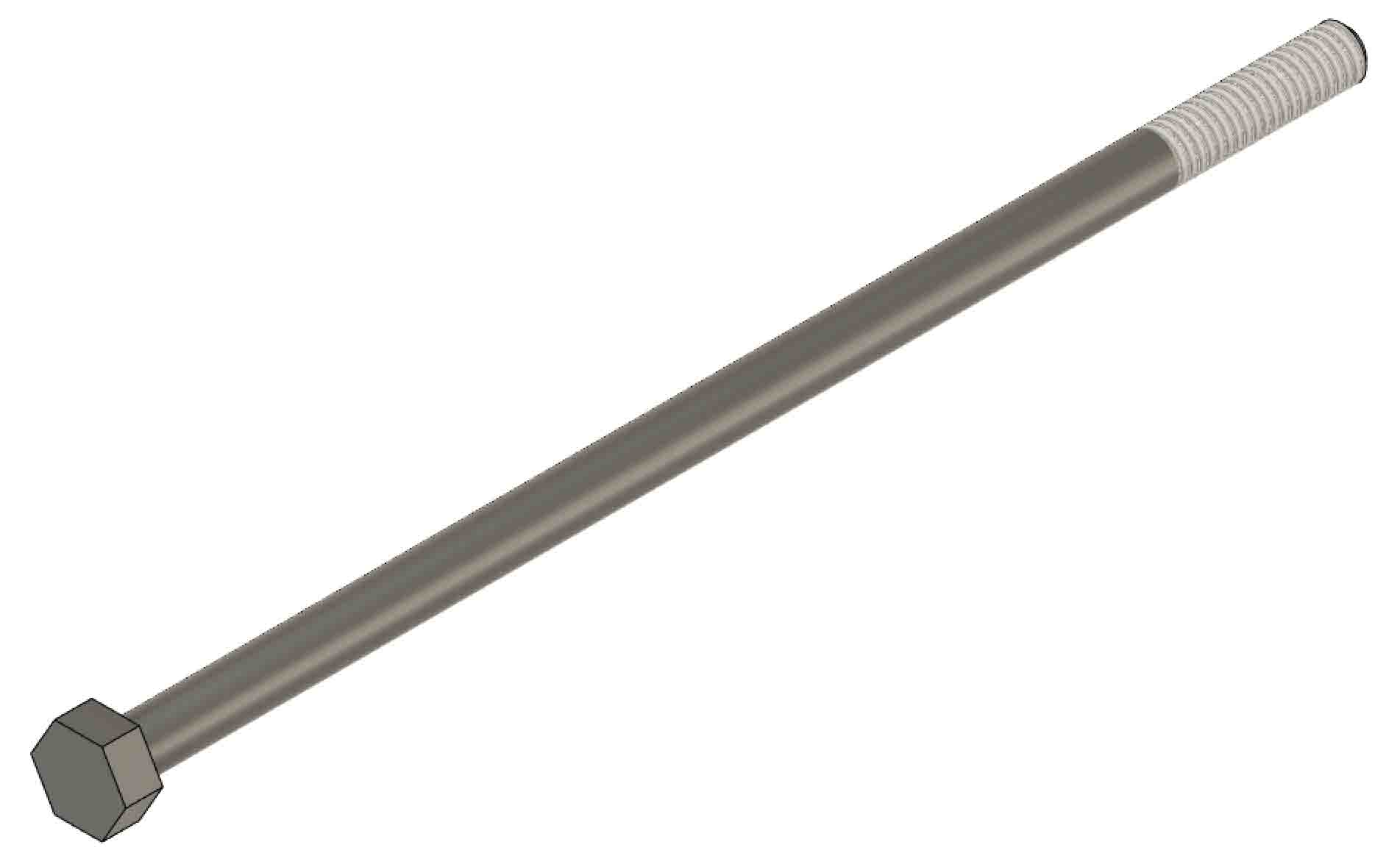

B51607504A | 5/16″ X 7 1/2″ HEX HD. BOLT Gr.5 | 14 |

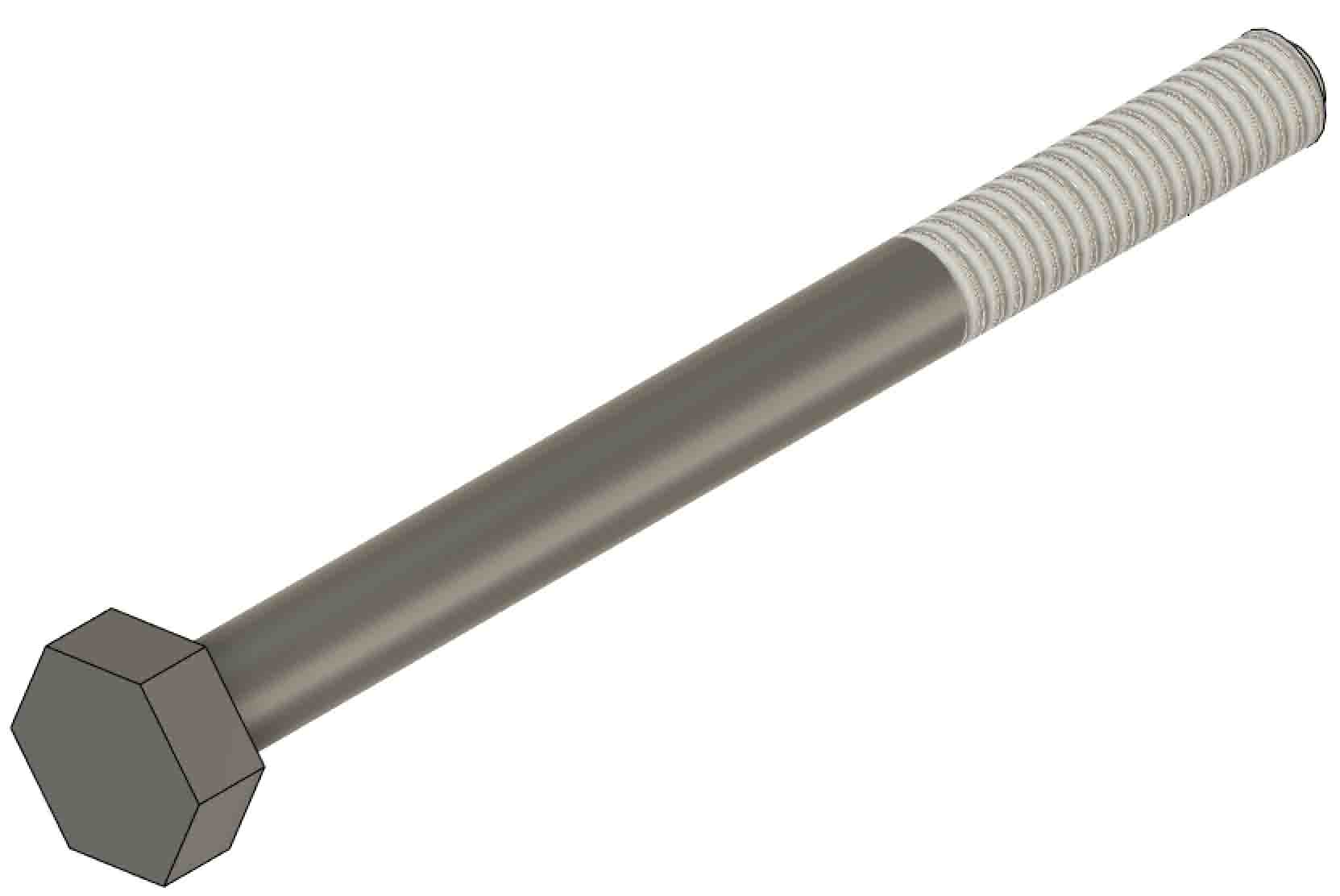

B140304 | 1/4″ X 3″ HEX HD BOLT | 1 |

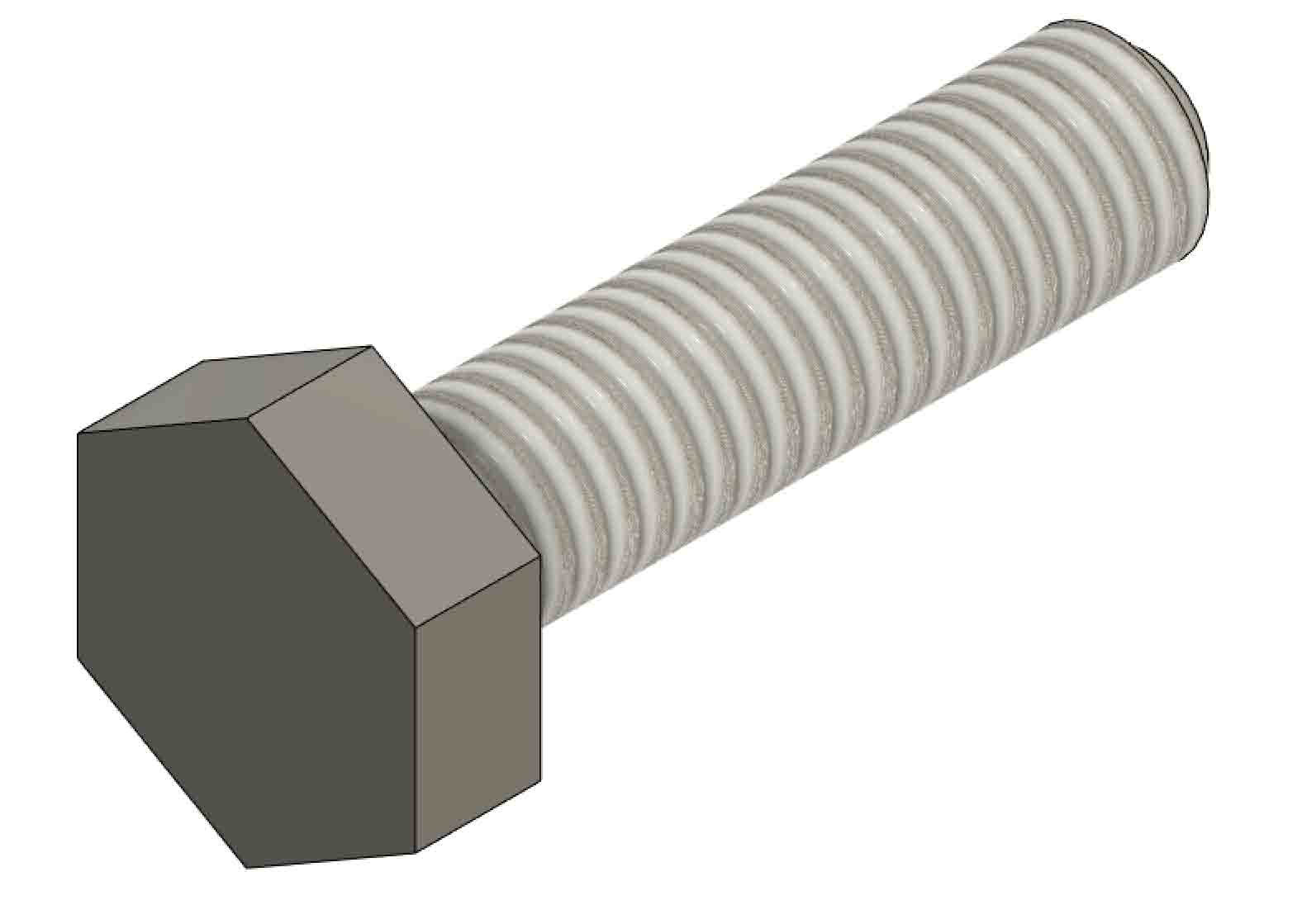

B120204A | 1/2″ X 2″ HEX HD BOLT Gr.5 Full Thread | 1 |

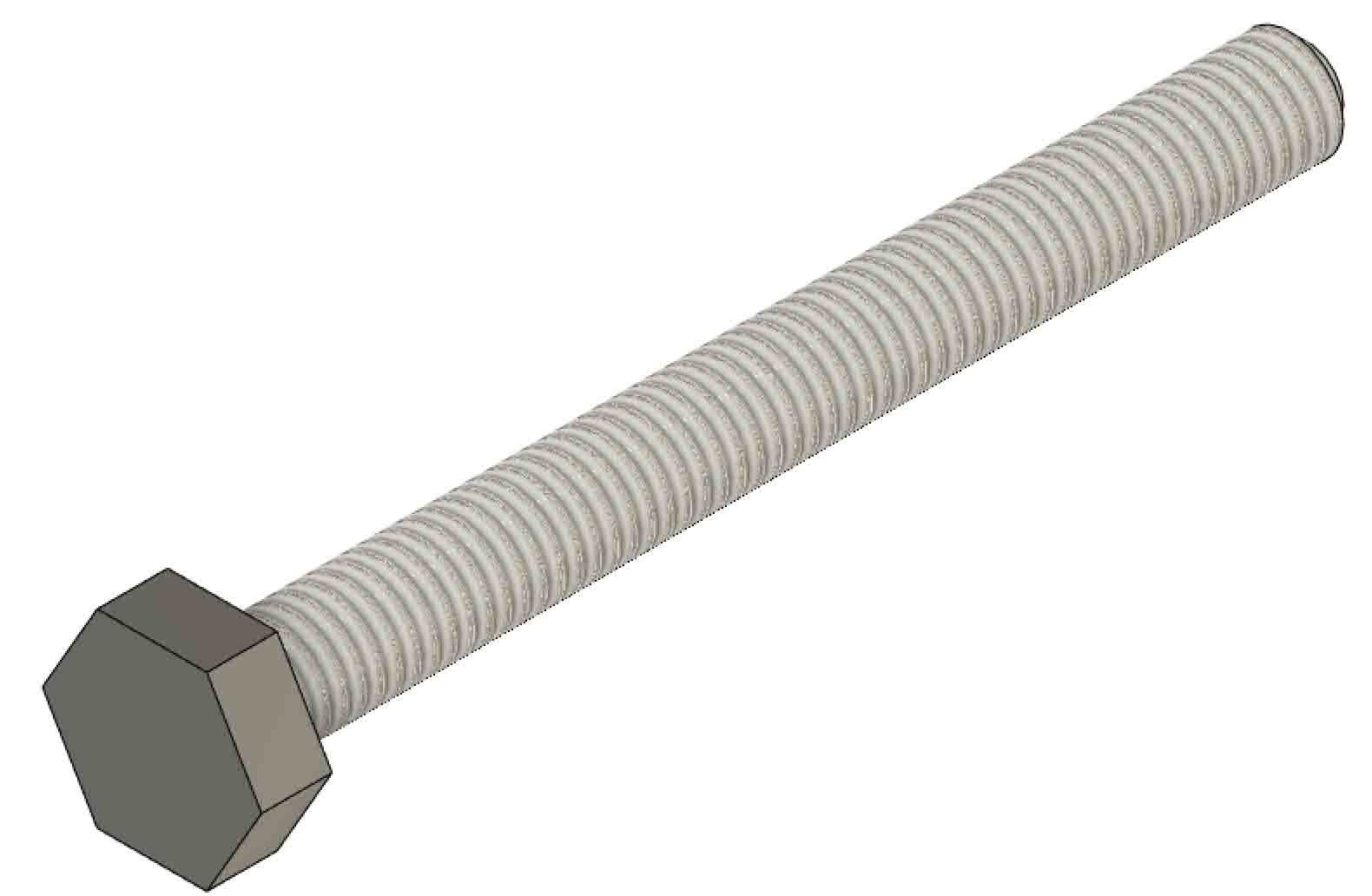

B120504A | 1/2″ X 5″ HEX HD BOLT Gr.5 | 1 |

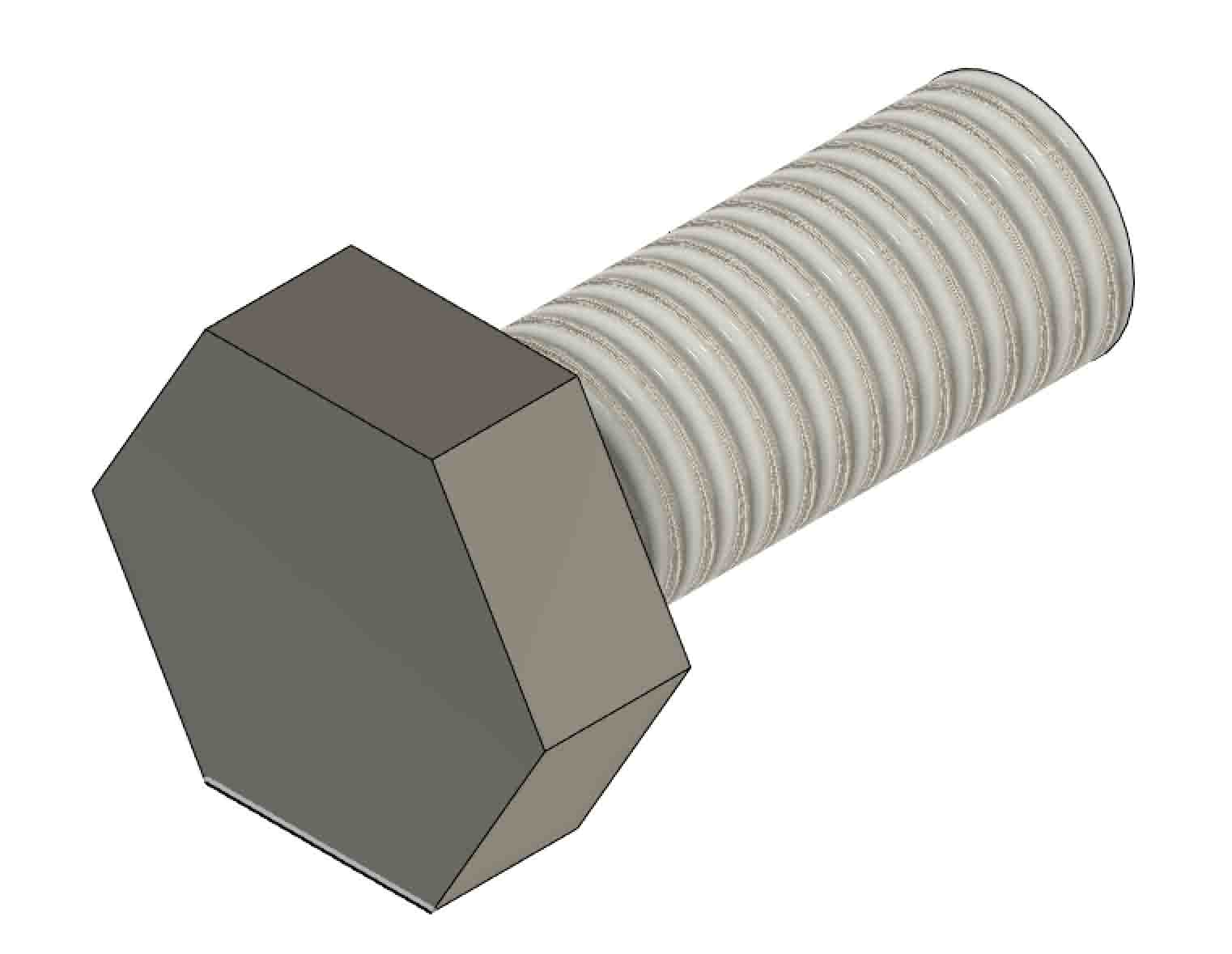

B580154 | 5/8″ X 1 1/2″ HEX HD BOLT Gr.2 | 7 |

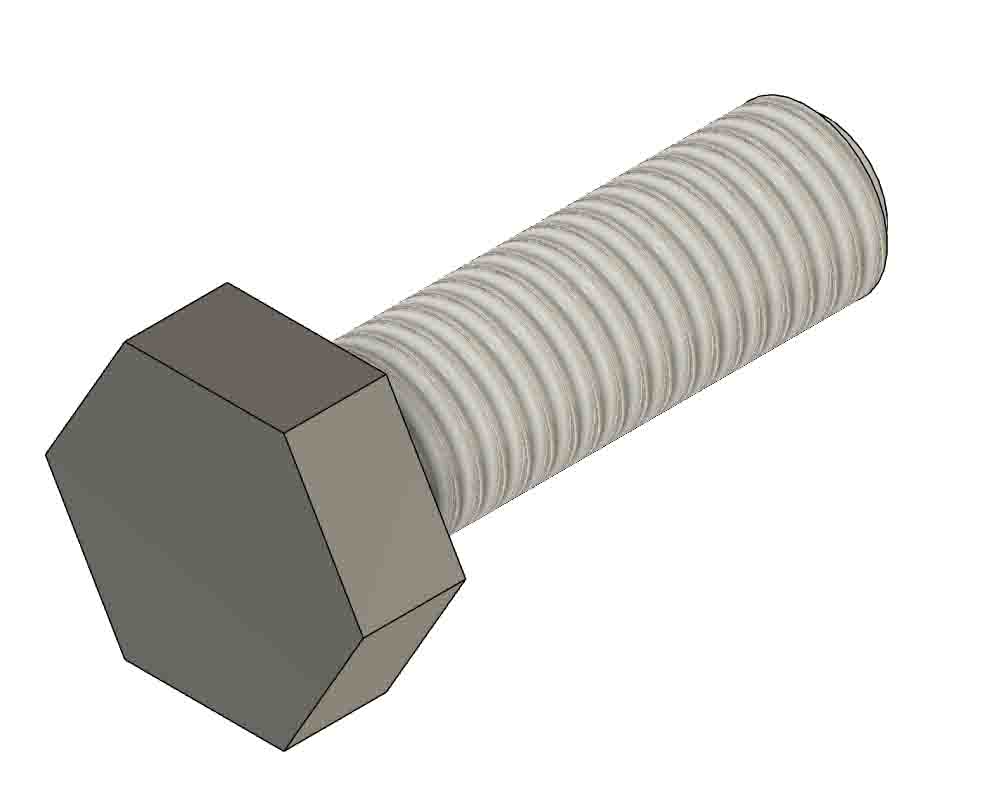

B580204A | 5/8″ X 2″ HEX HD BOLT Gr.5 | 4 |

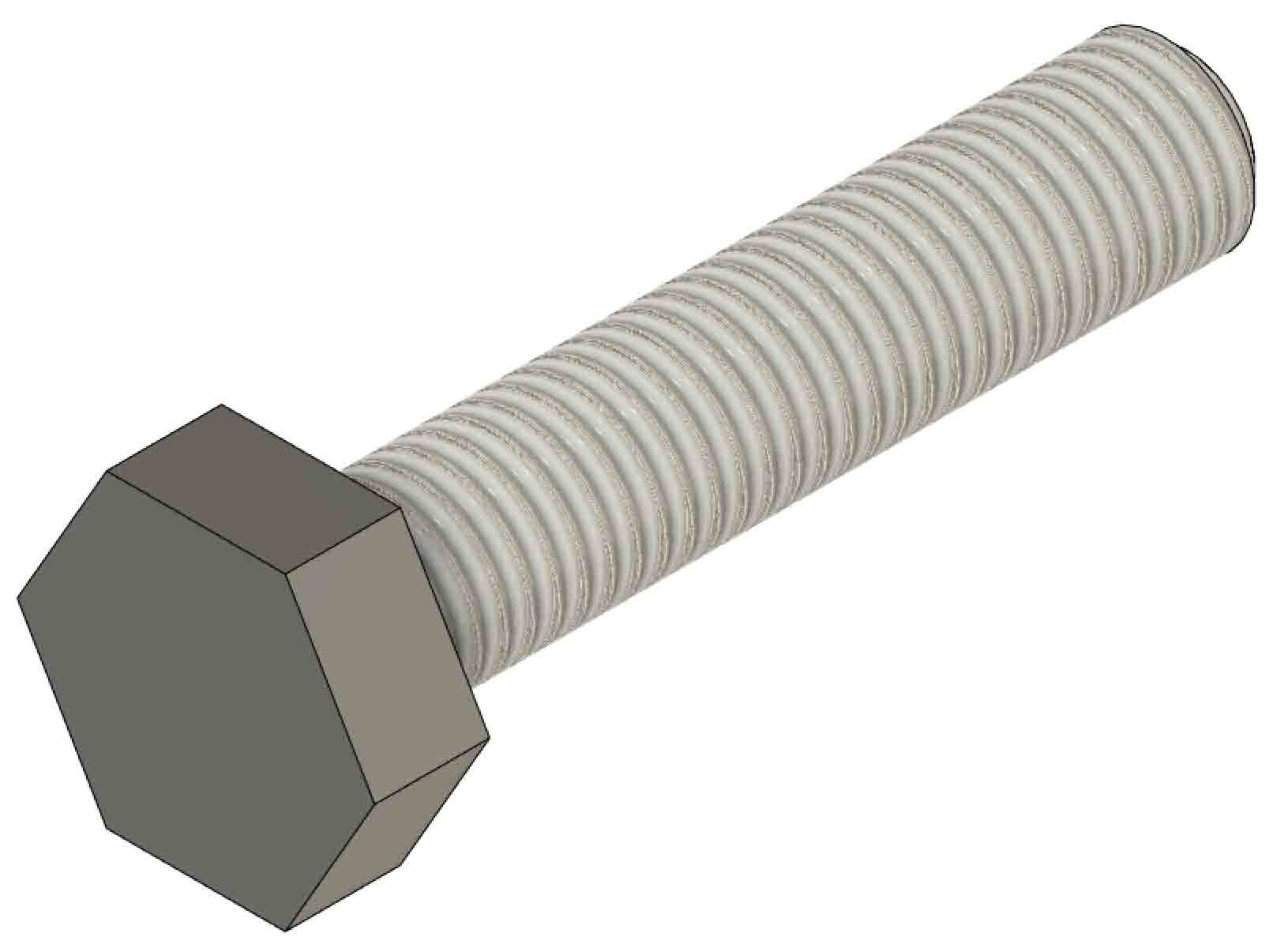

B580304A | 5/8″ X 3″ HEX HD BOLT Gr.5 | 1 |

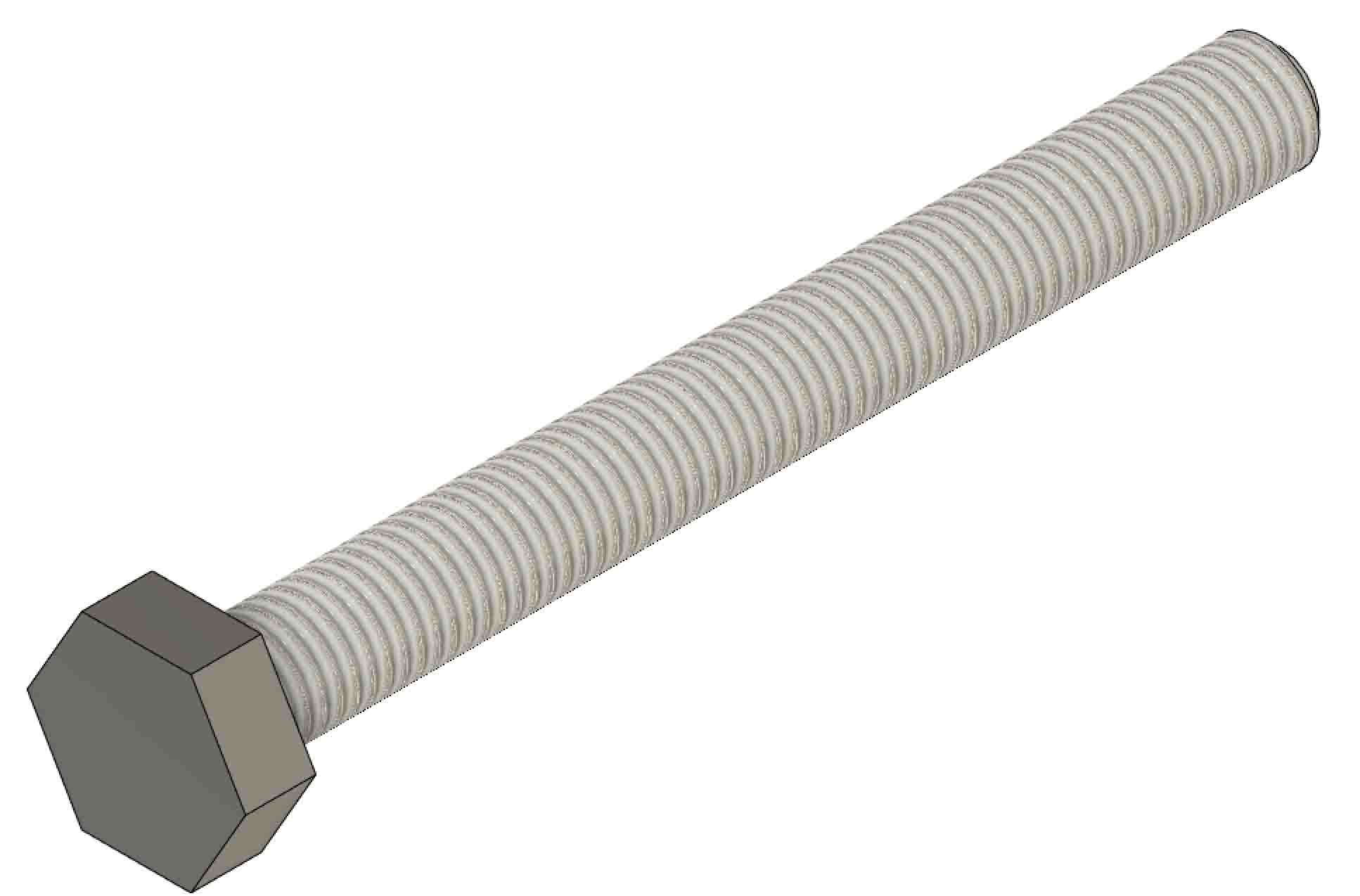

B580604A | 5/8″ x 6″ HEX HD BOLT Gr. 5 | 4 |

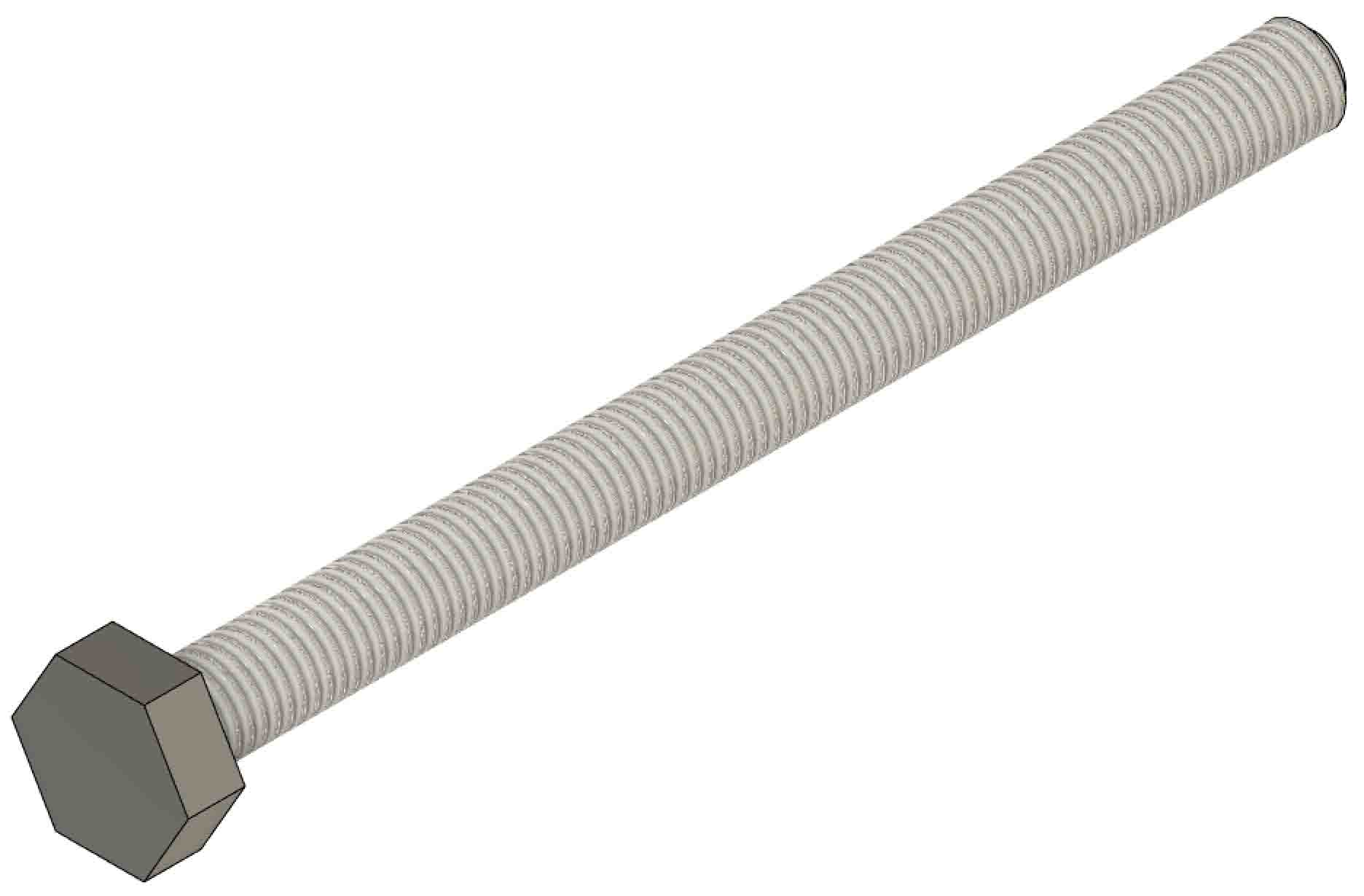

B580804A | 5/8″ X 8″ HEX HD BOLT Gr.5 | 1 |

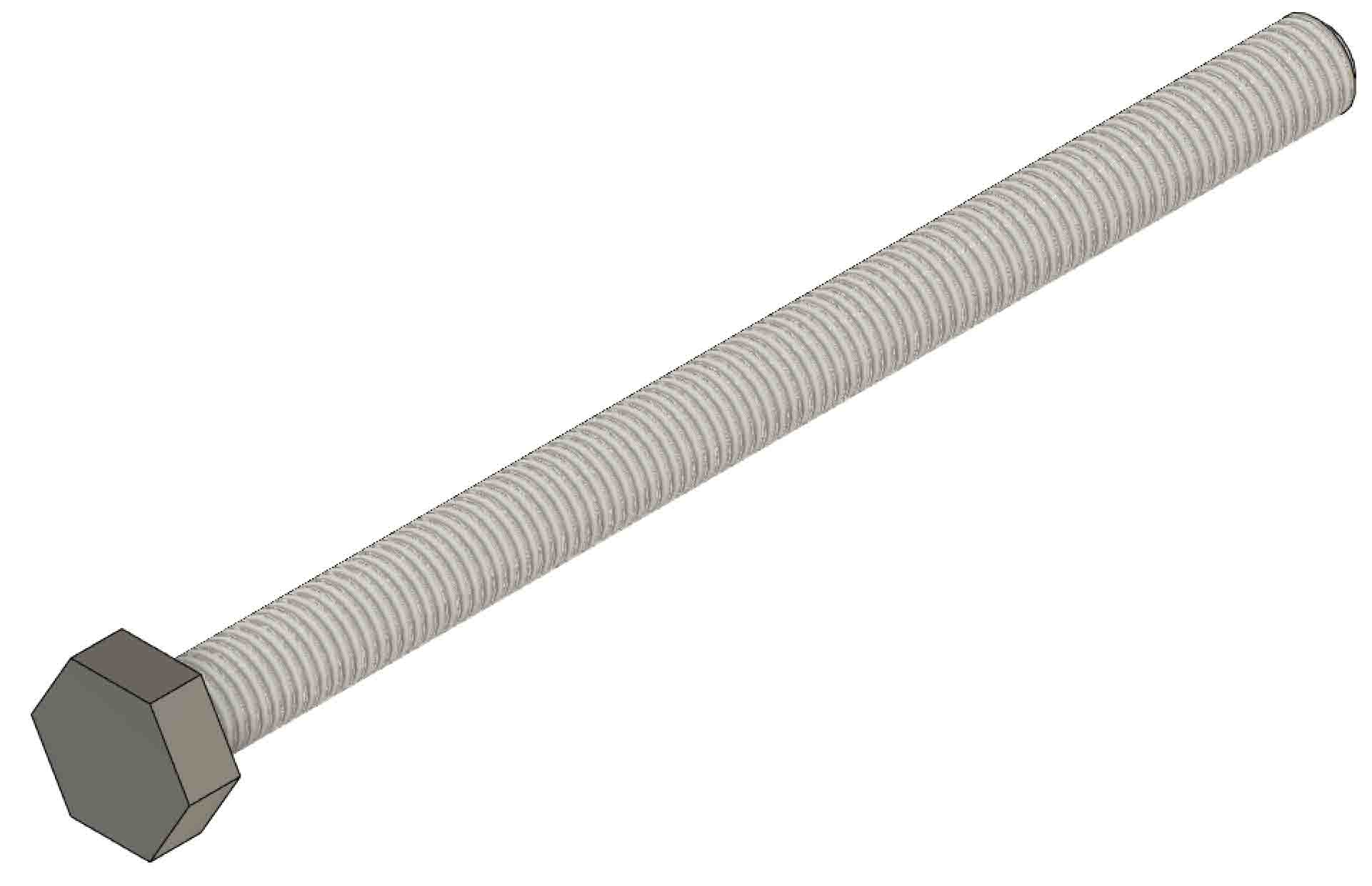

B580904A | 5/8″ X 9″ HEX HD BOLT Gr.5 | 4 |

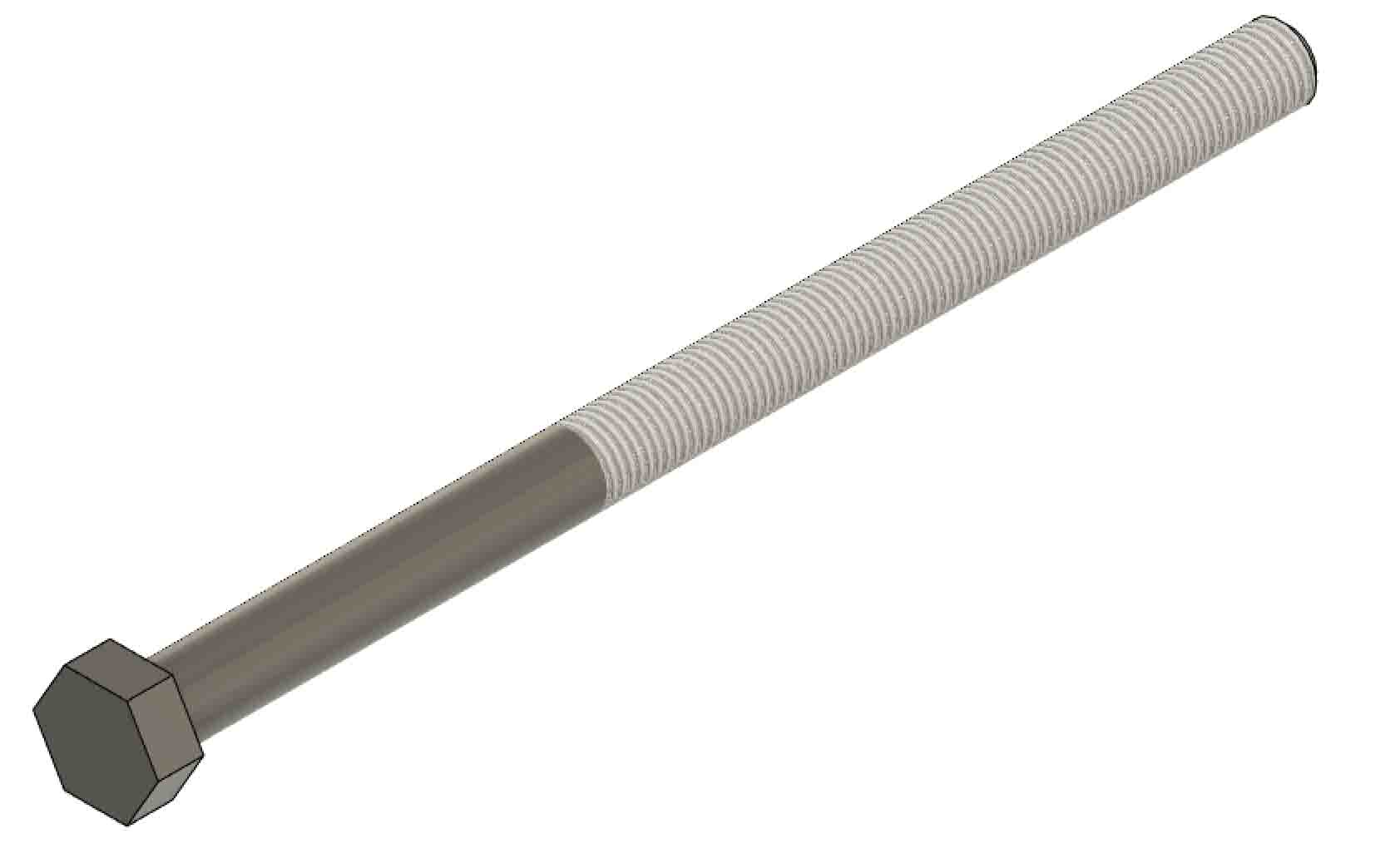

B101604A | 1″ x 16 HEX HD BOLT GR.5 | 2 |
N0516 | 5/16″ HEX NUT | 14 |

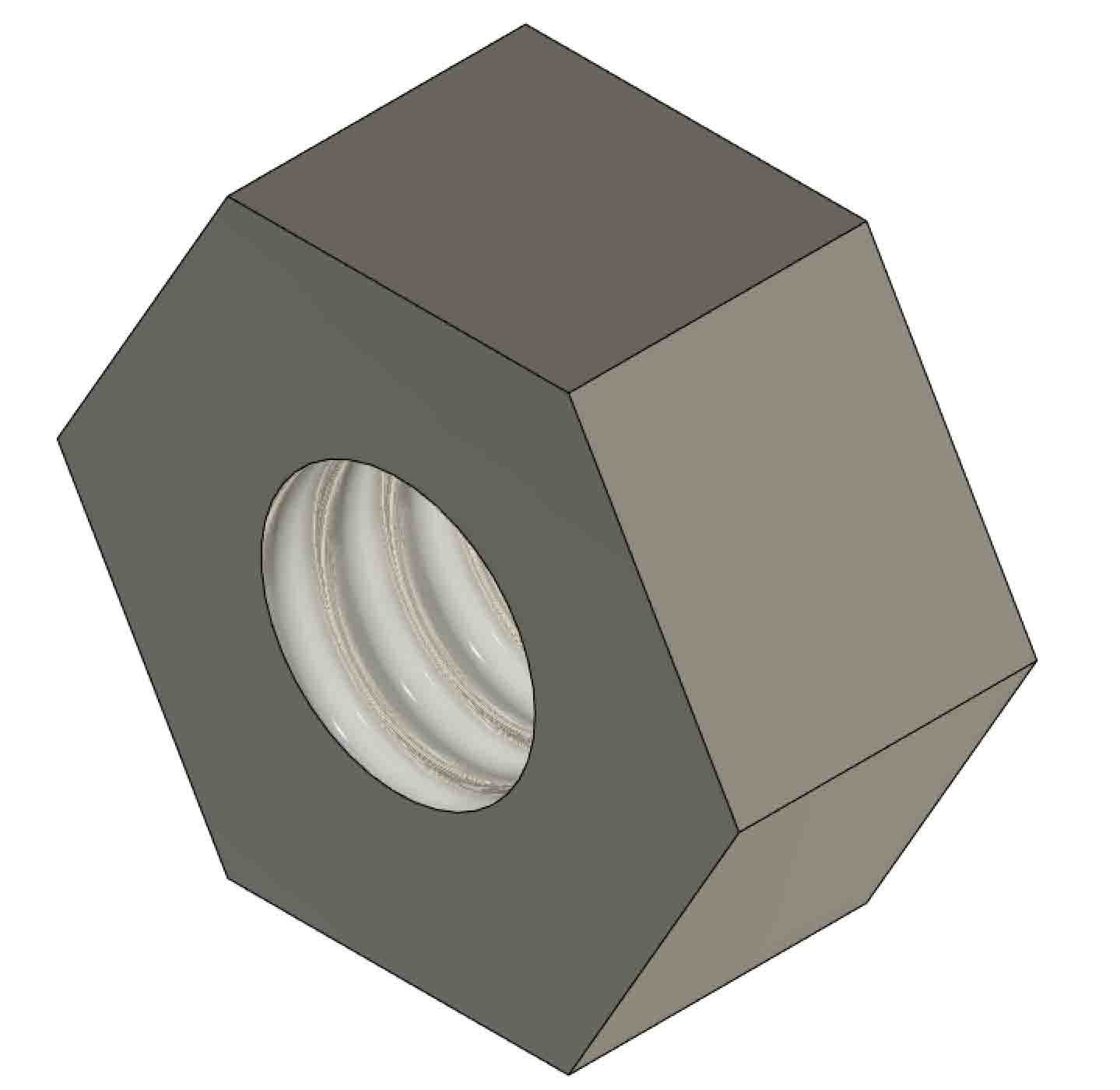

N014 | 1/4″ HEX NUT | 1 |

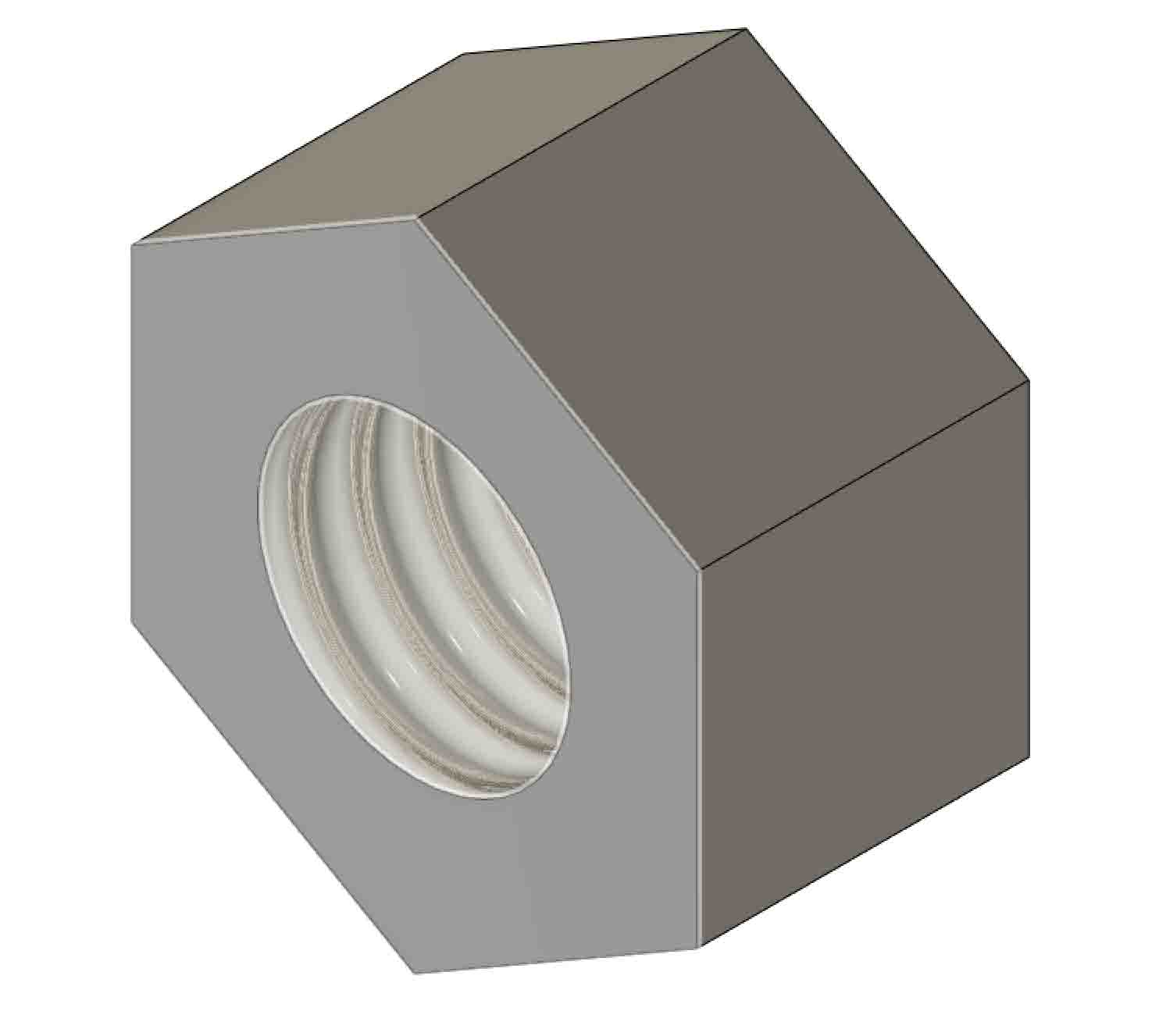

N012 | 1/2″ HEX NUT | 2 |
N050 | 5/8″ DR NUT | 7 |

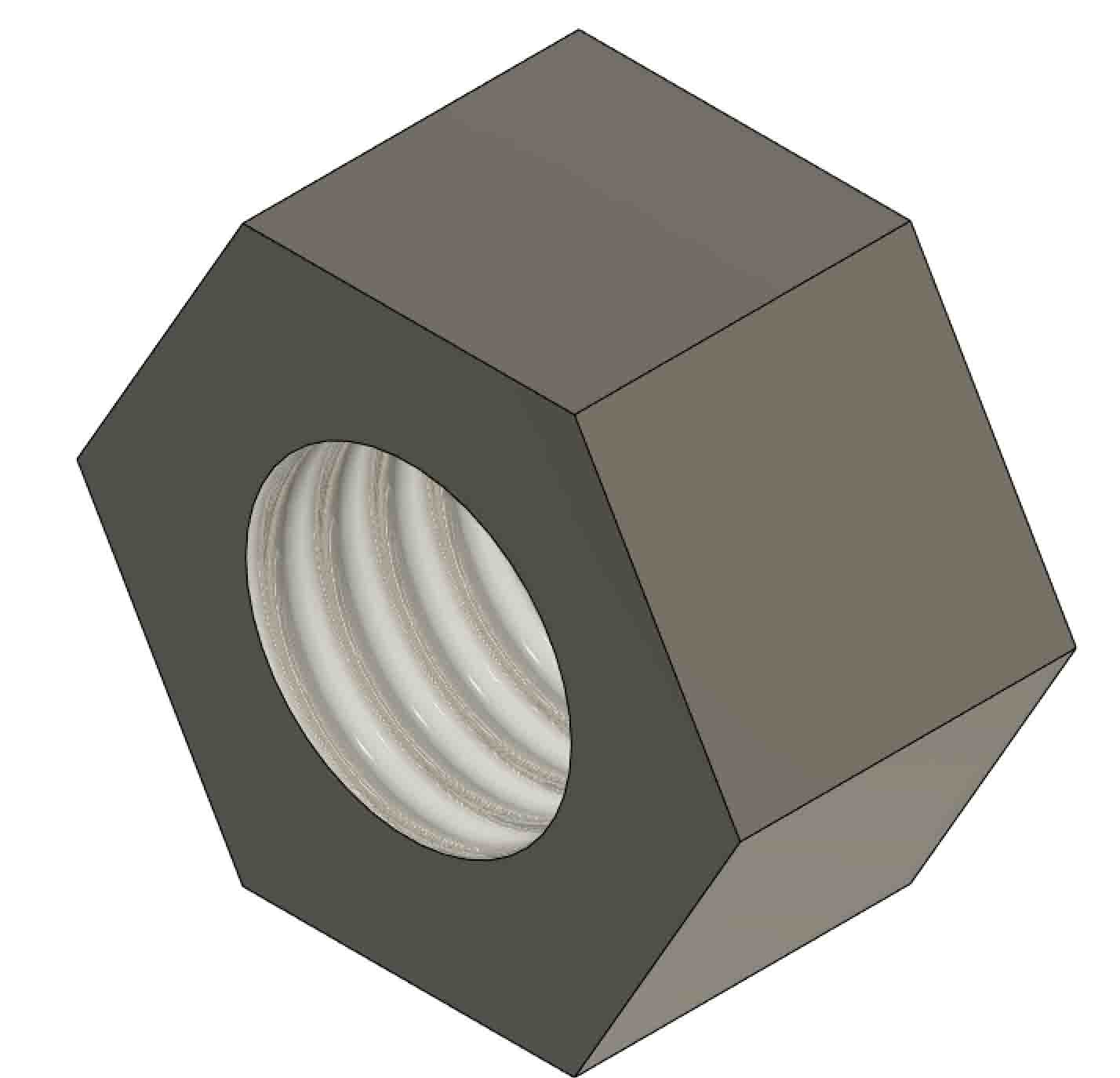

N055 | 5/8″ HEX NUT | 18 |
N100A | 1″ HEAVY HEX NUT Gr. 5 | 4 |
W0516 | 5/16″ WASHER | 28 |

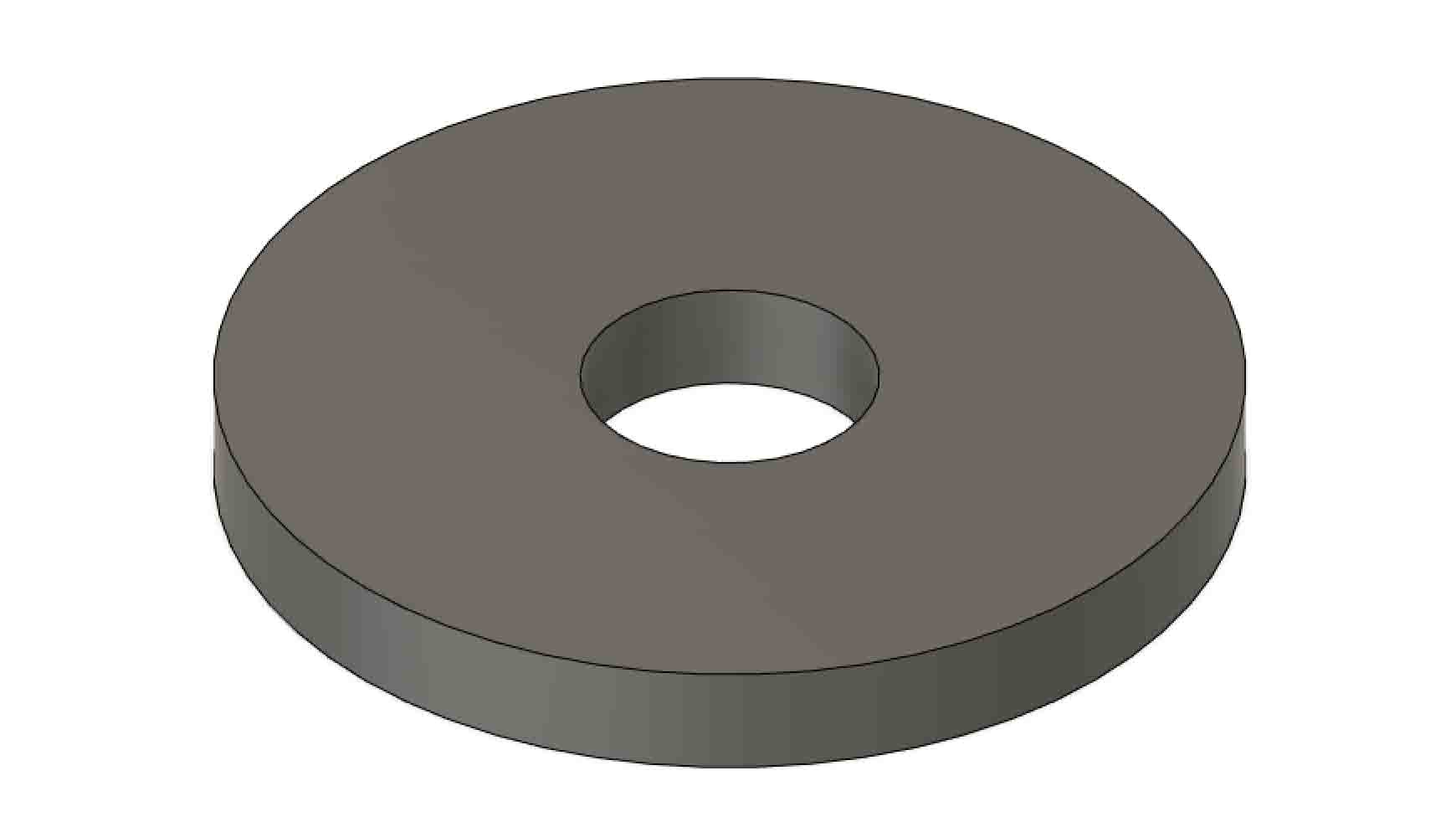

W014 | 1/4″ WASHER | 1 |

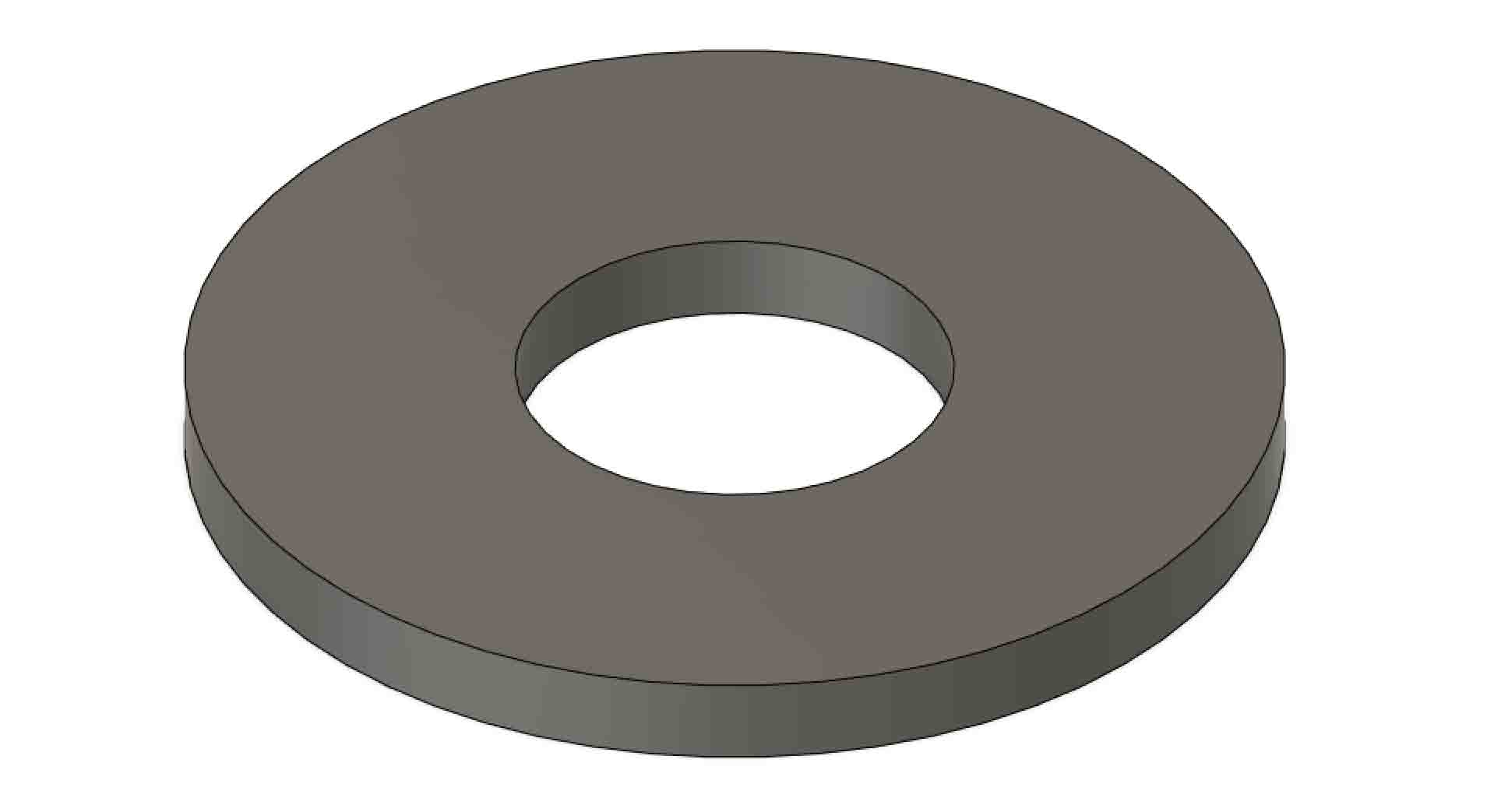

W012 | 1/2″ WASHER | 2 |
W050 | 5/8″ WASHER | 33 |
W100A | 1″ HEAVE WASHER Gr. 5 | 4 |
CT-100ST | Cable Tie – Steel | 2 |
