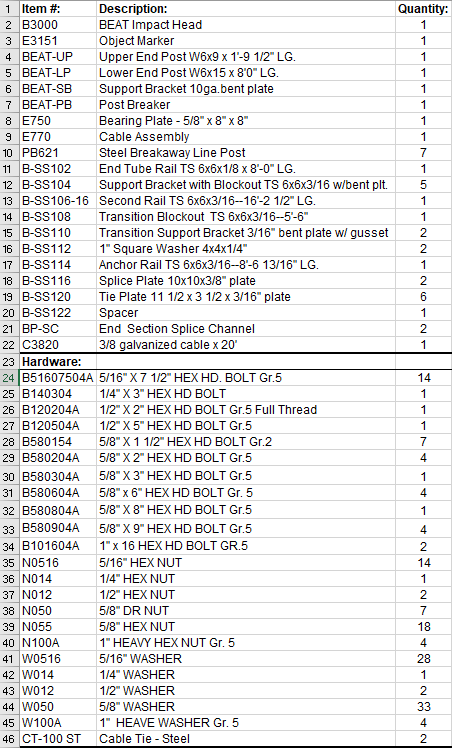

Parts required in the BEAT-SSCC system:
| Item#: | Description: | Quantity: |

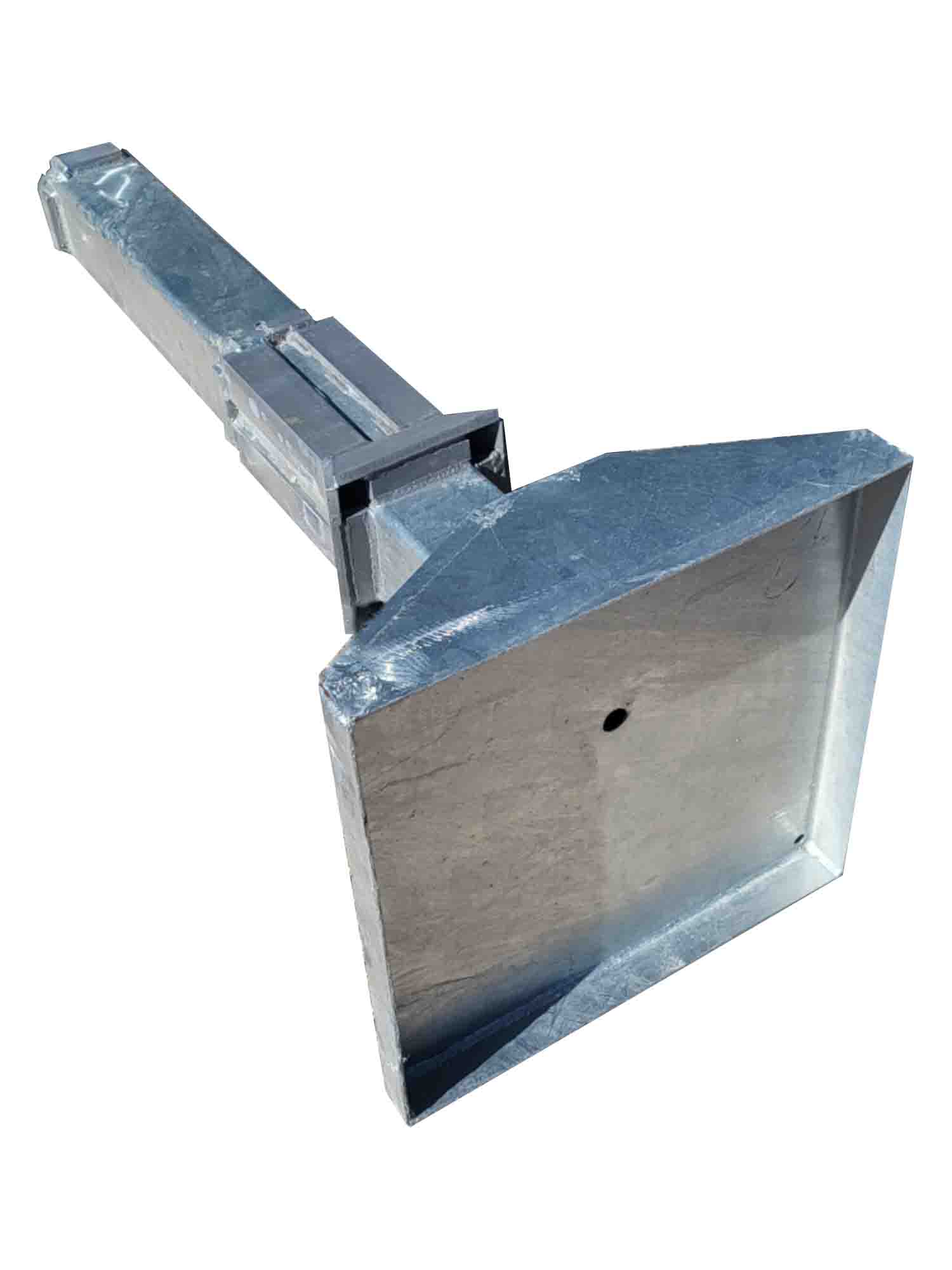

B3000 | BEAT Impact Head | 1 |
E3151 | Object Marker | 1 |

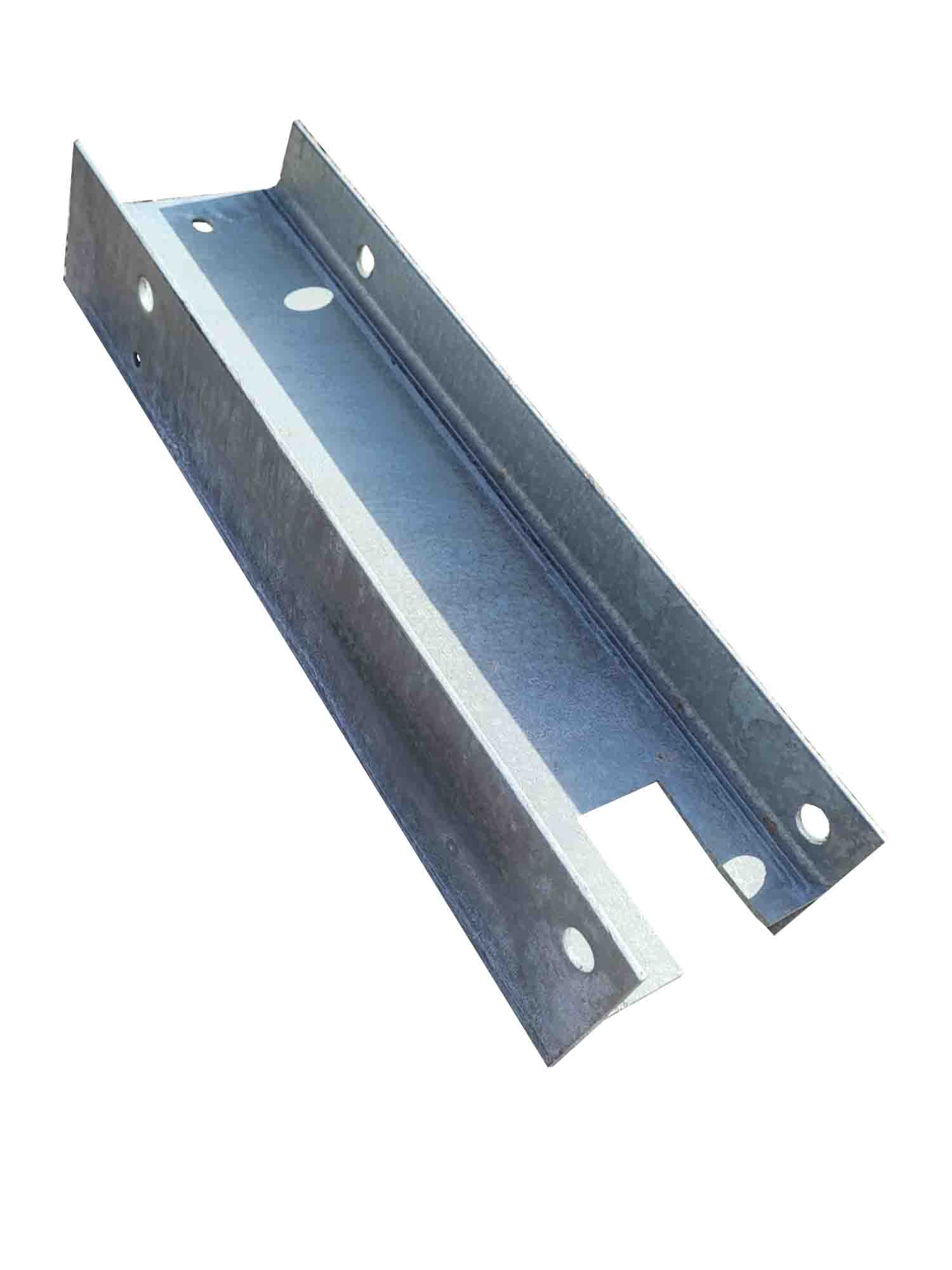

BEAT-UP | Upper End Post W6x9 x 1′-9 1/2″ LG. | 1 |

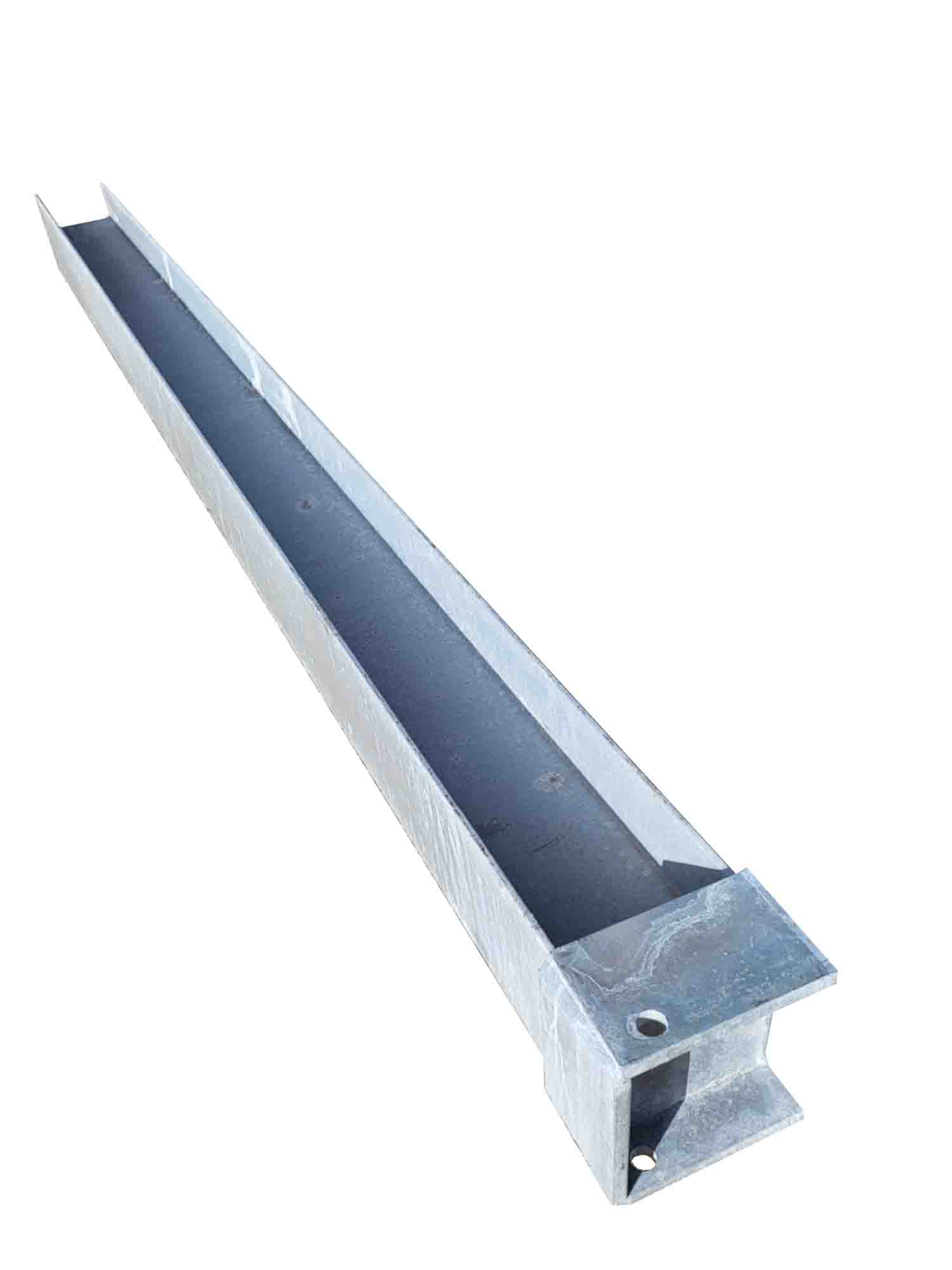

BEAT-LP | Lower End Post W6x15 x 8’0″ LG. | 1 |

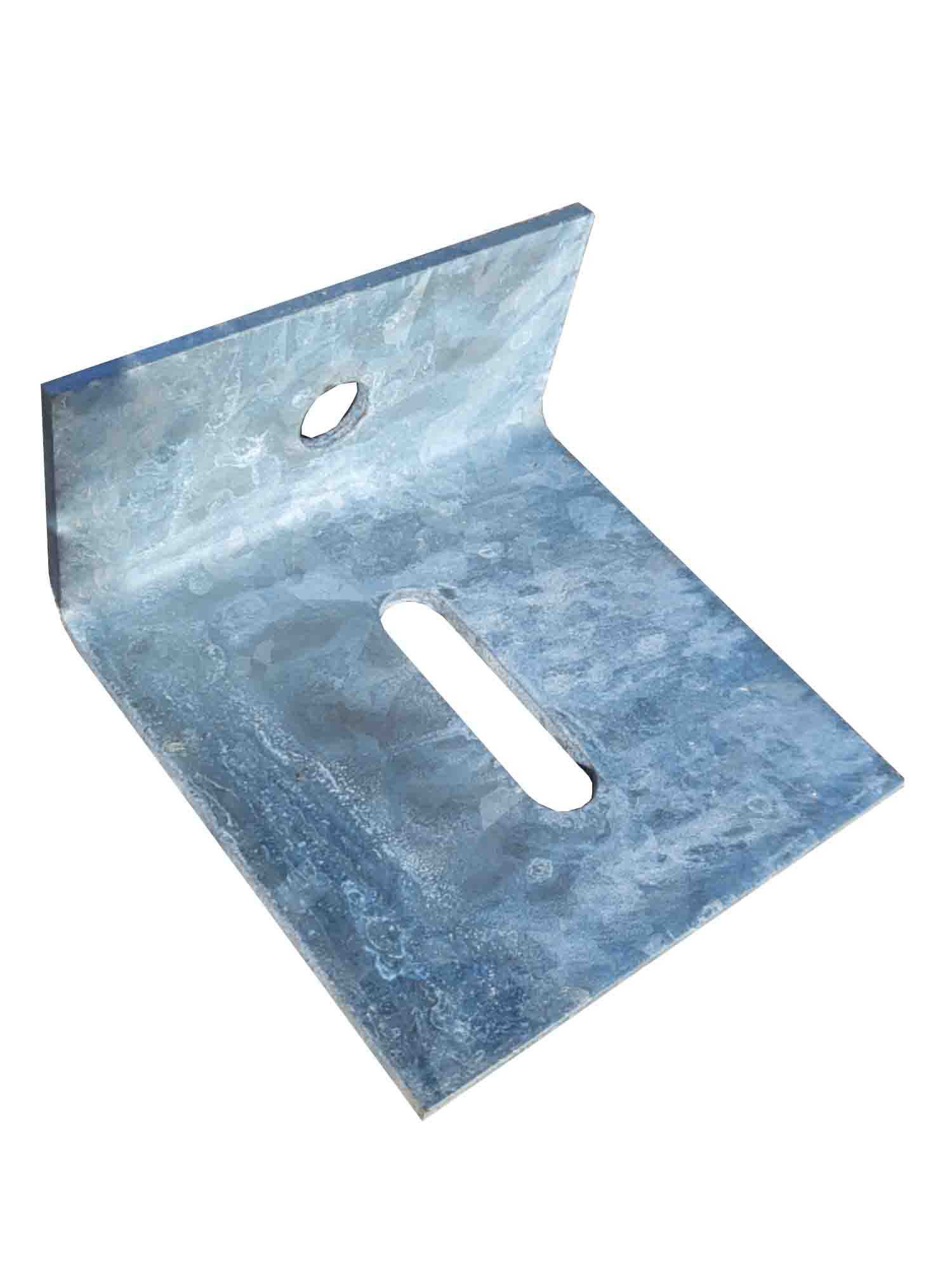

BEAT-SB | Support Bracket 10ga.bent plate | 1 |

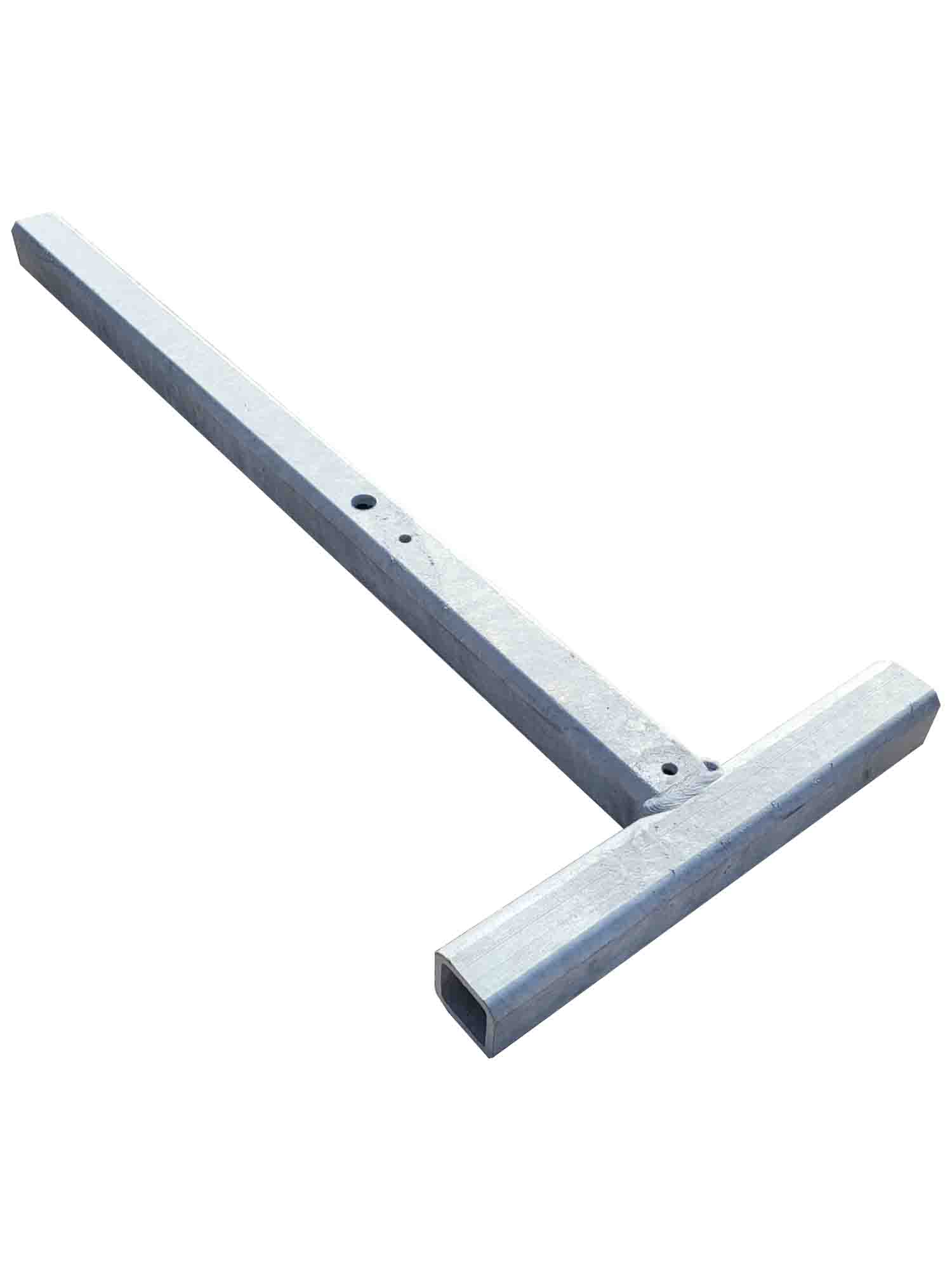

BEAT-PB | Post Breaker | 1 |
E750 | Bearing Plate – 5/8″ x 8″ x 8″ | 1 |
E770 | Cable Assembly | 1 |

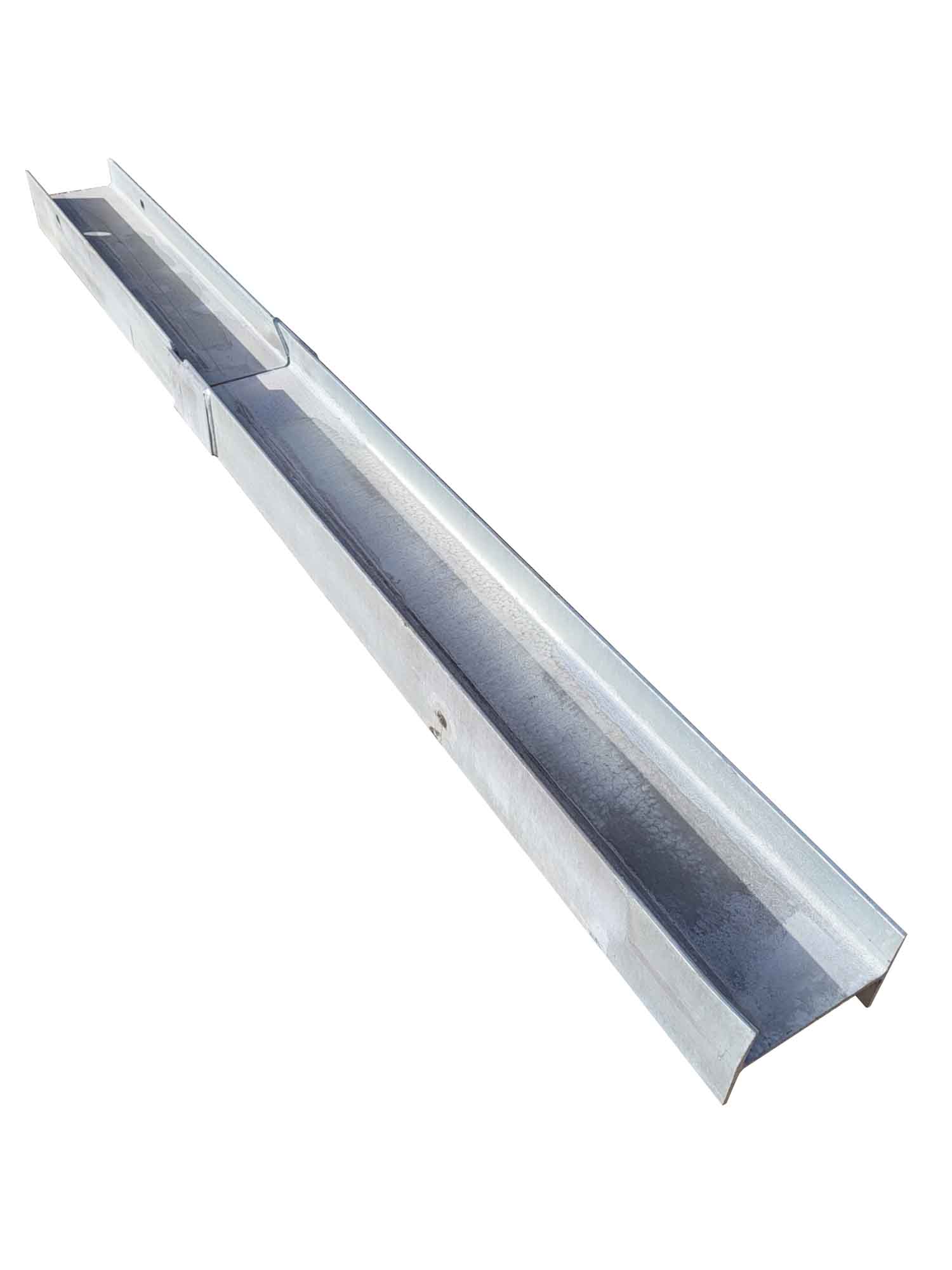

PB621 | Steel Breakaway Line Post | 7 |

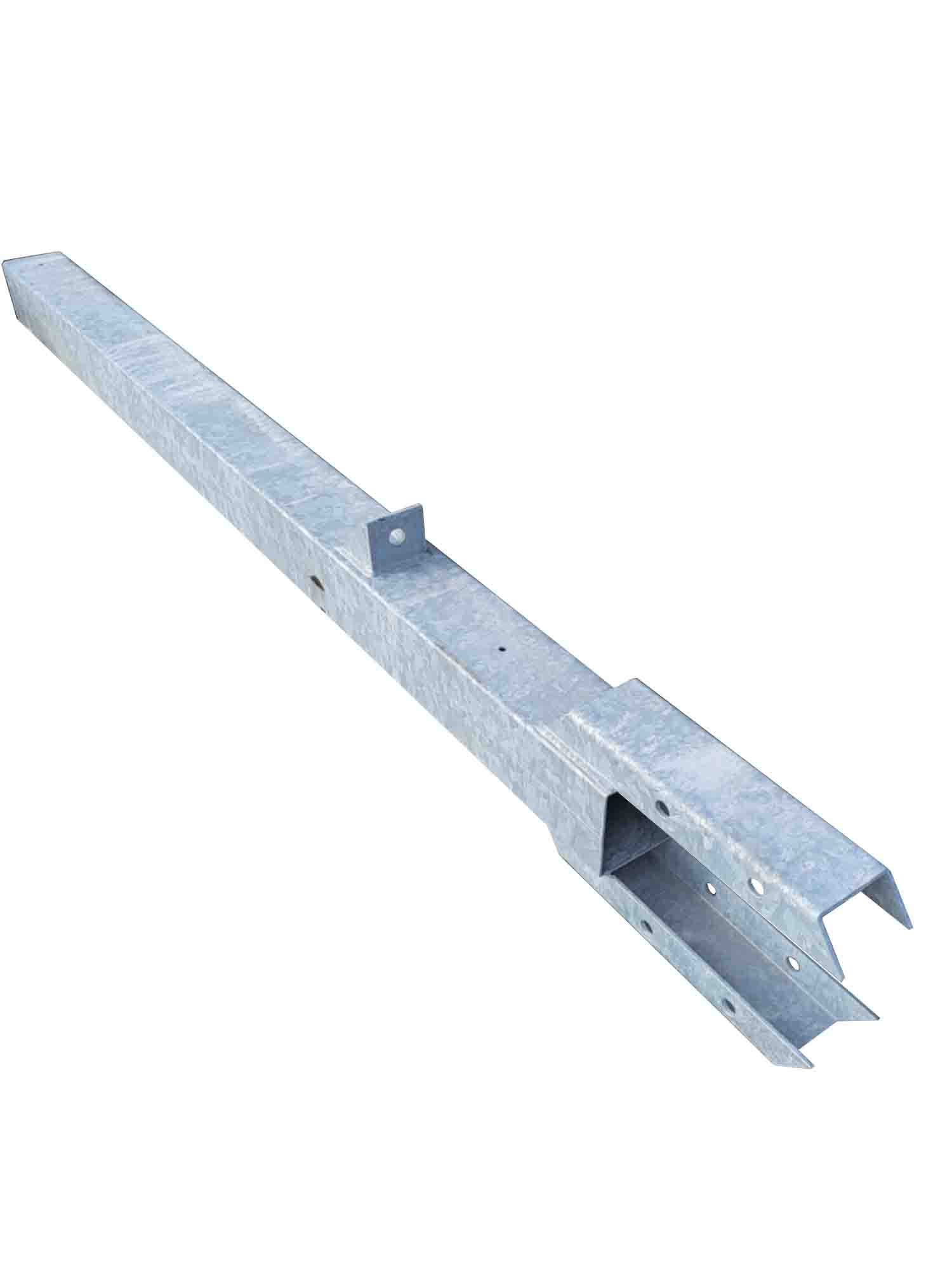

B-SS102 | End Tube Rail TS 6x6x1/8 x 8′-0″ LG. | 1 |

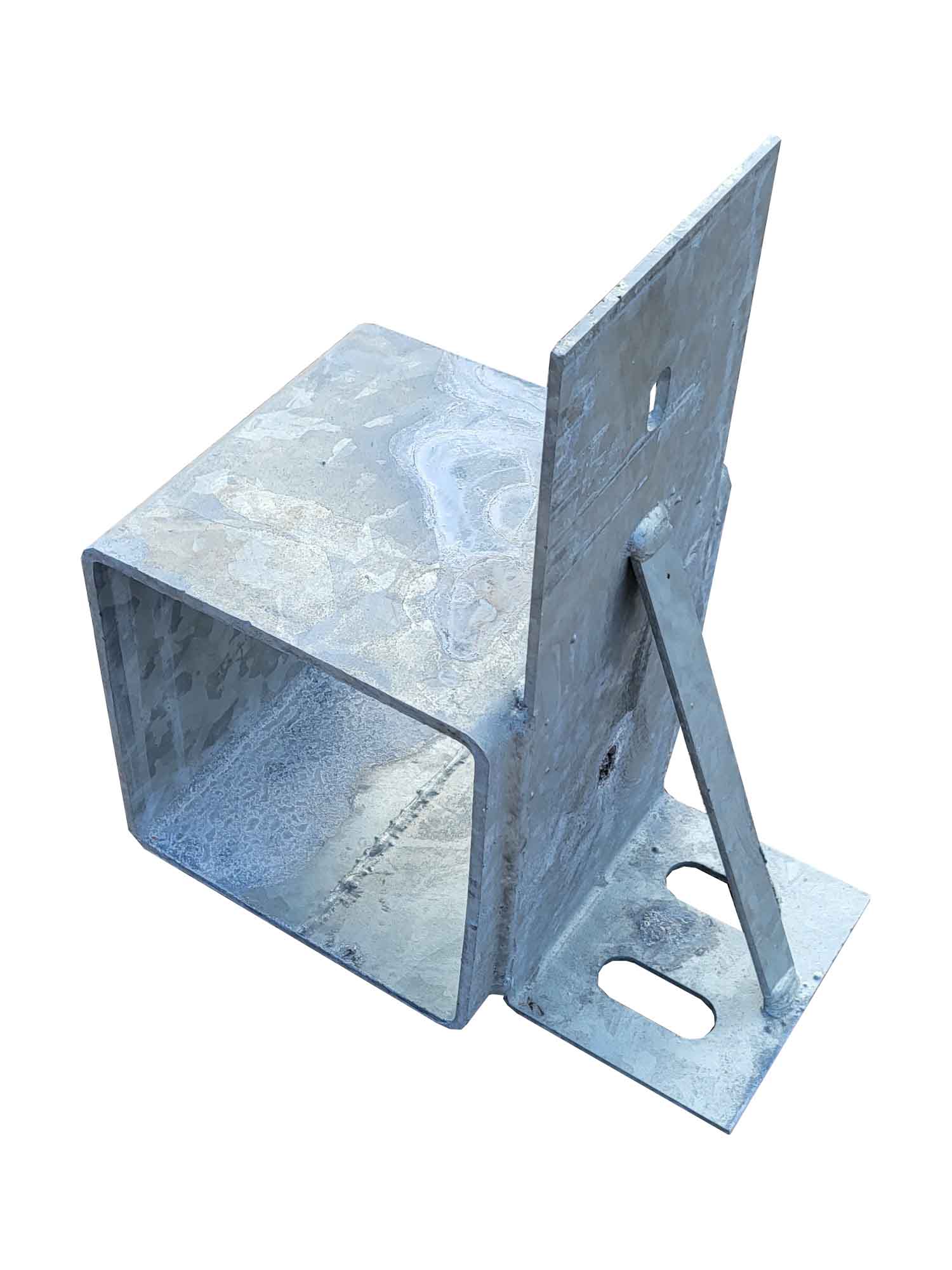

B-SS104 | Support Bracket with Blockout TS 6x6x3/16 w/bent plt. | 5 |
B-SS106-16 | Second Rail TS 6x6x3/16–16′-2 1/2″ LG. | 1 |

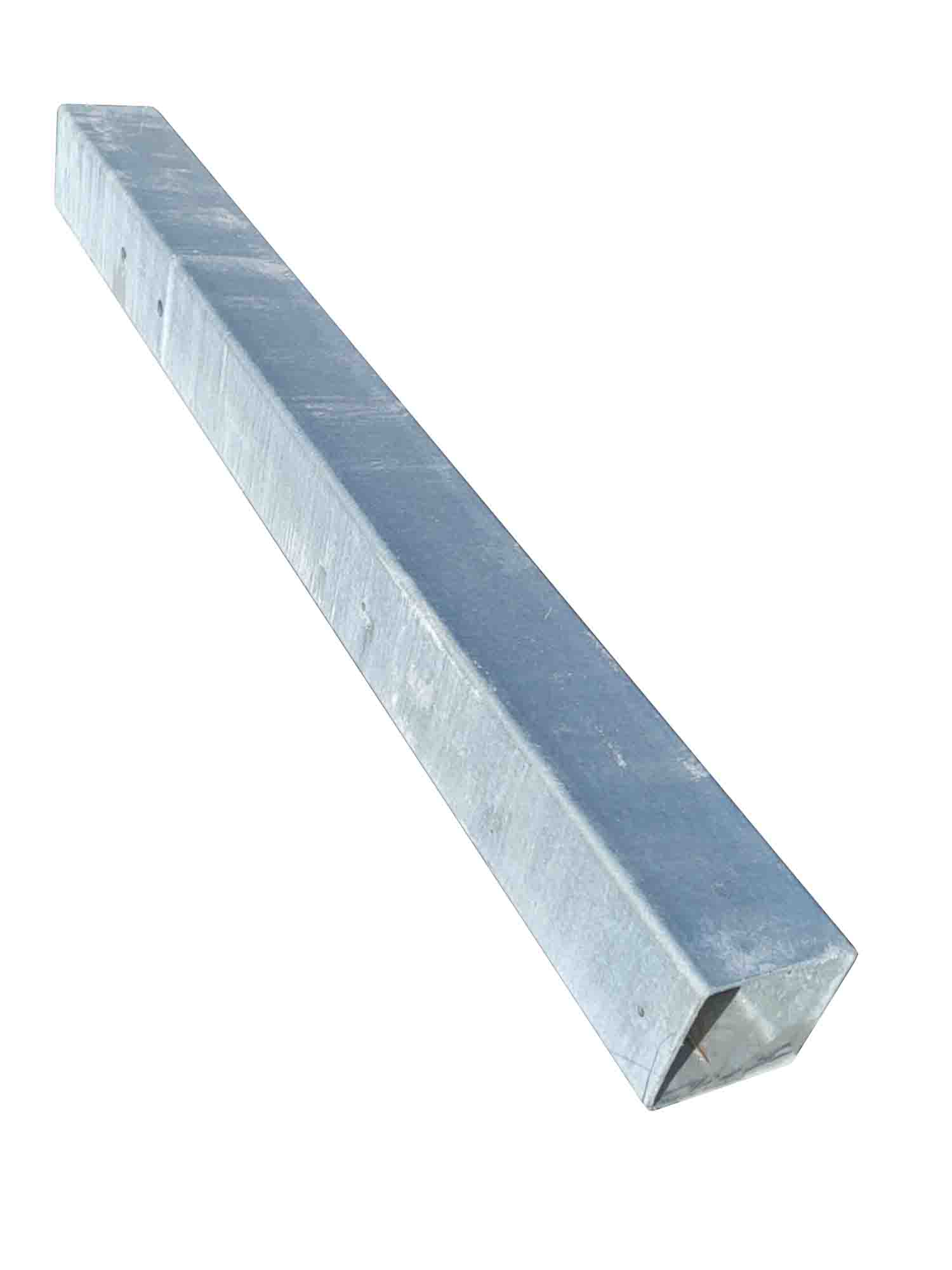

B-SS108 | Transition Blockout TS 6x6x3/16–5′-6″ | 1 |
B-SS110 | Transition Support Bracket bent plate w/ gusset | 2 |

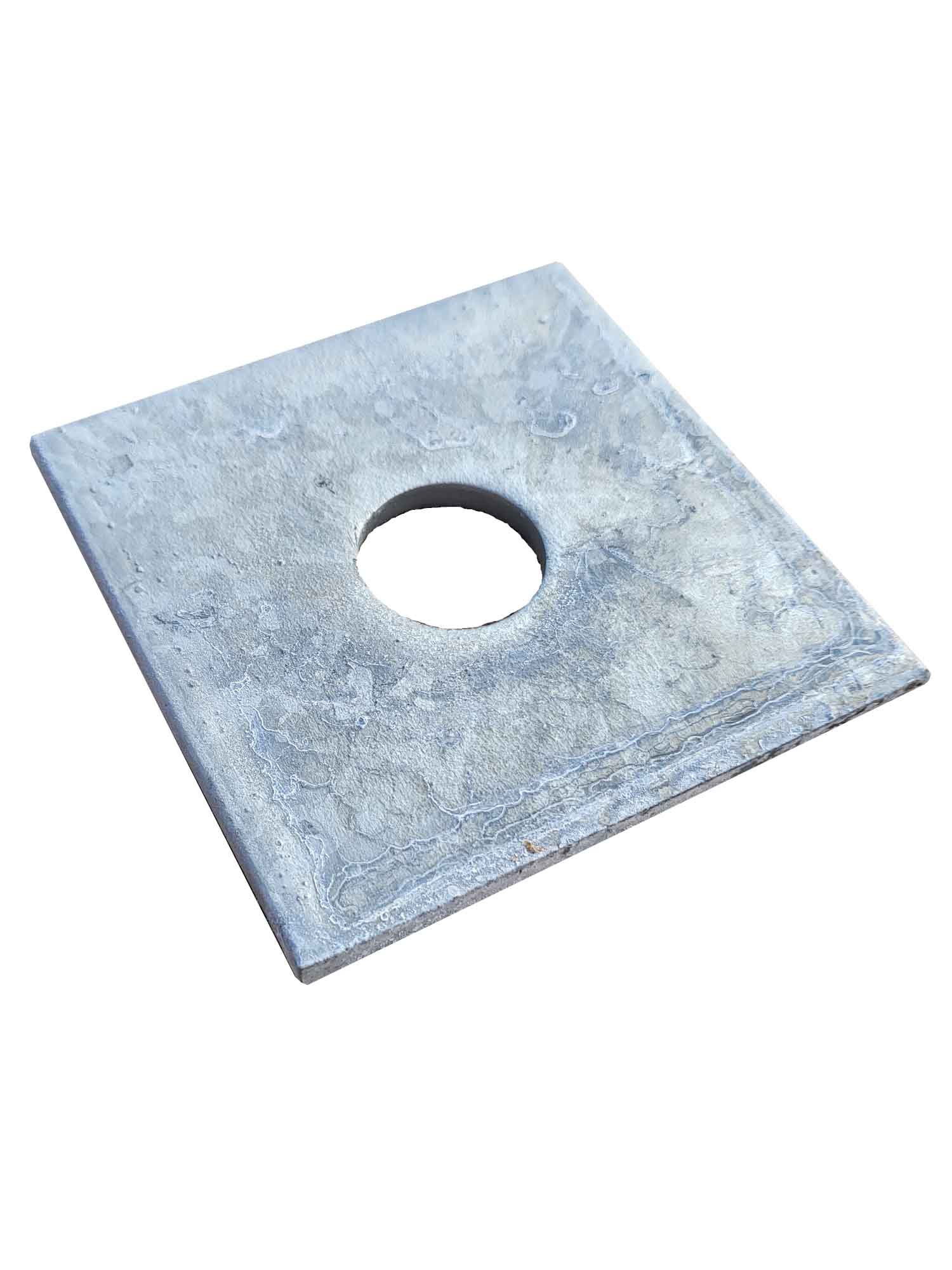

B-SS112 | 1″ Square Washer 4x4x1/4″ | 2 |

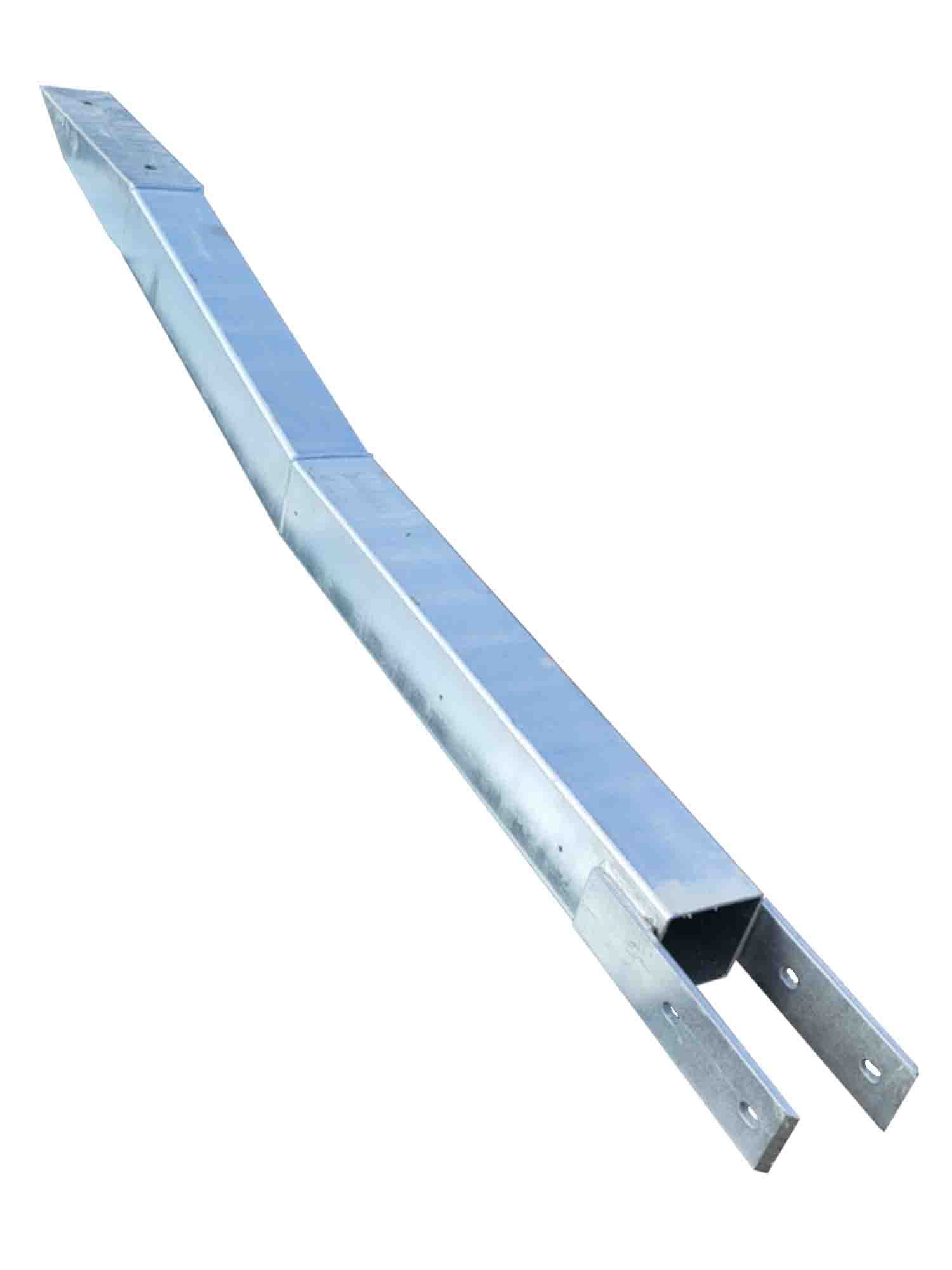

B-SS114 | Anchor Rail TS 6x6x3/16–8′-6 13/16″ LG. | 1 |

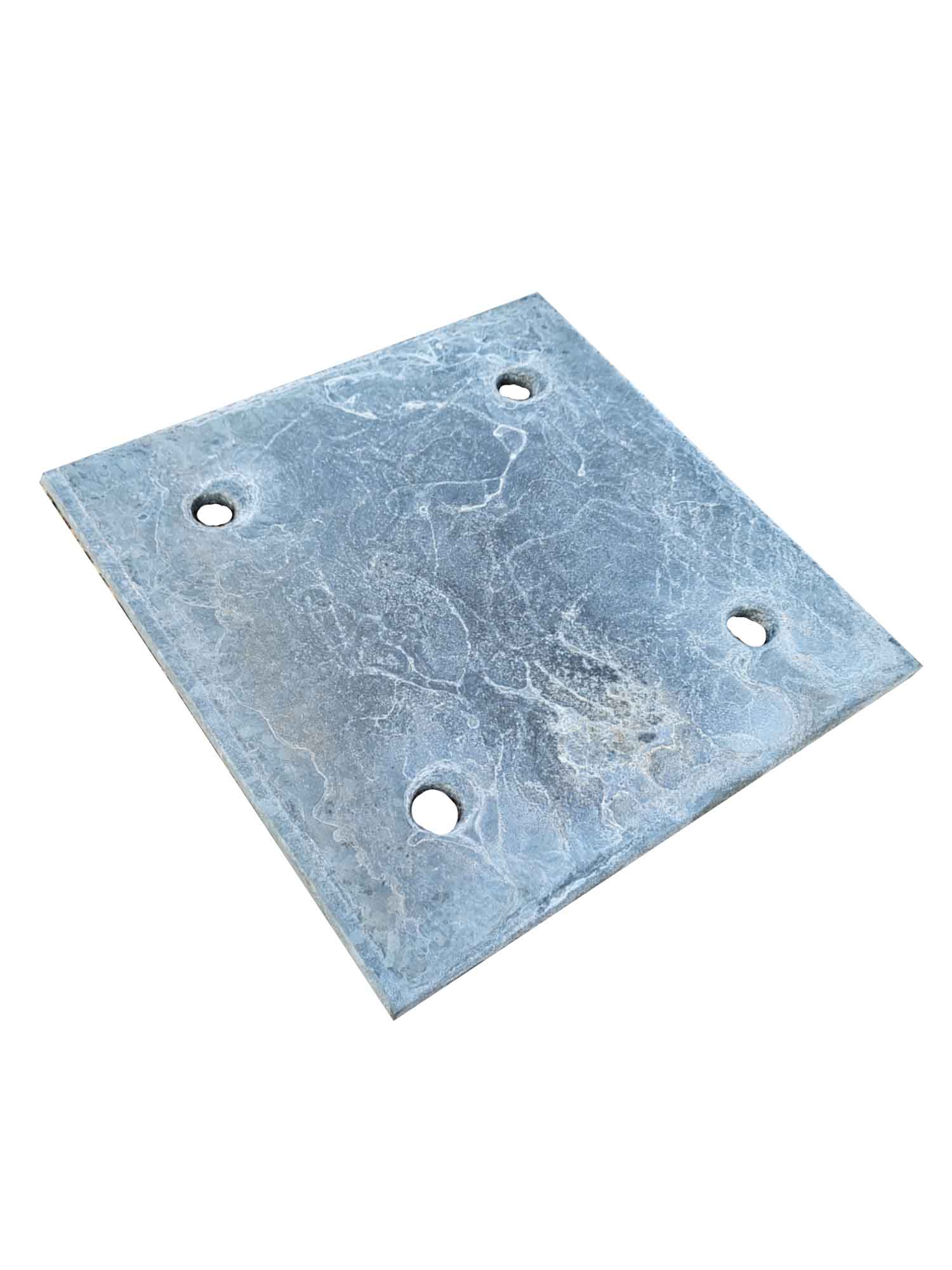

B-SS116 | Splice Plate 10x10x3/8″ plate | 2 |
B-SS120 | Tie Plate 11 1/2 x 3 1/2 x 3/16″ plate | 6 |

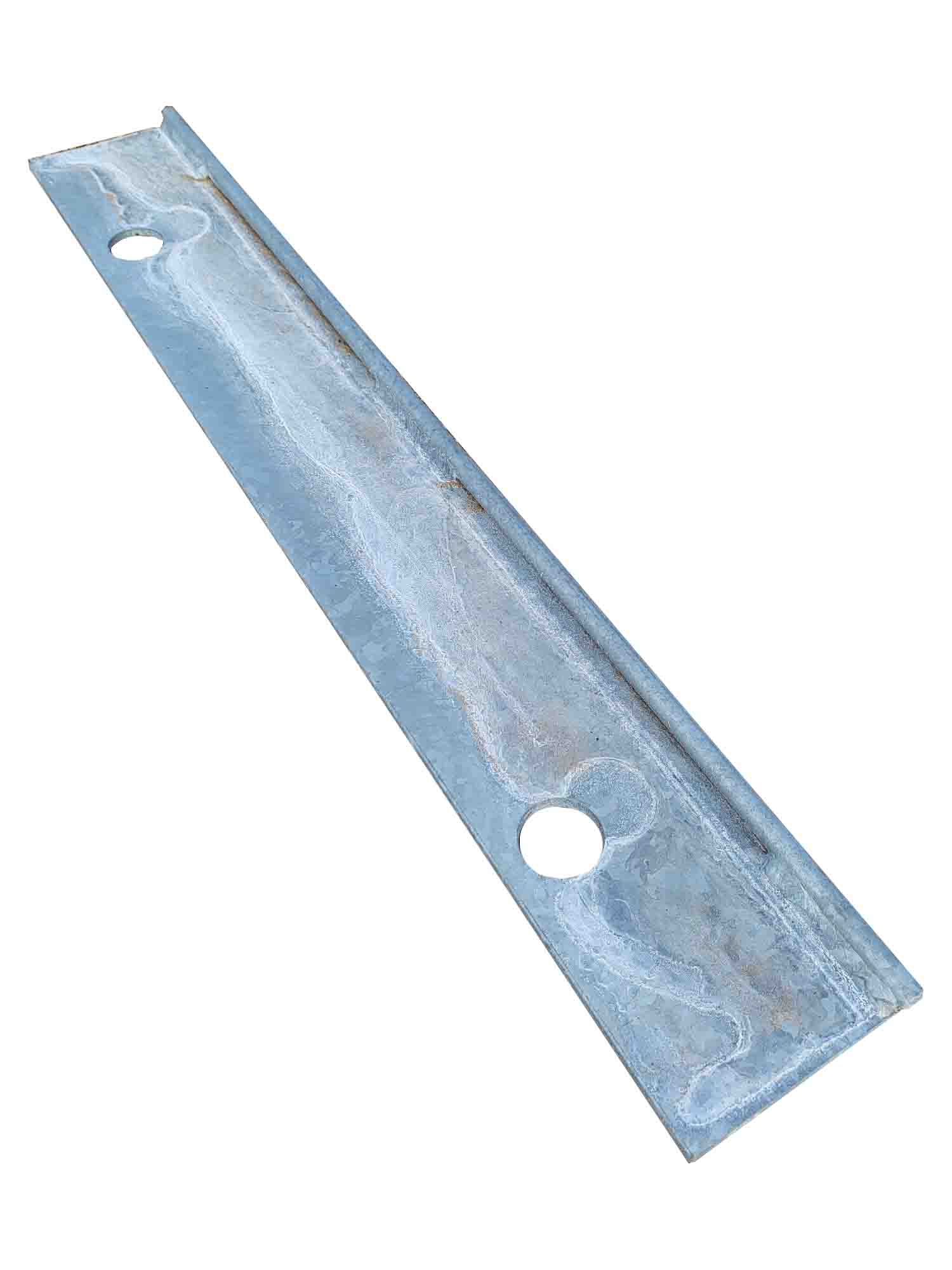

B-SS122 | Spacer | 1 |

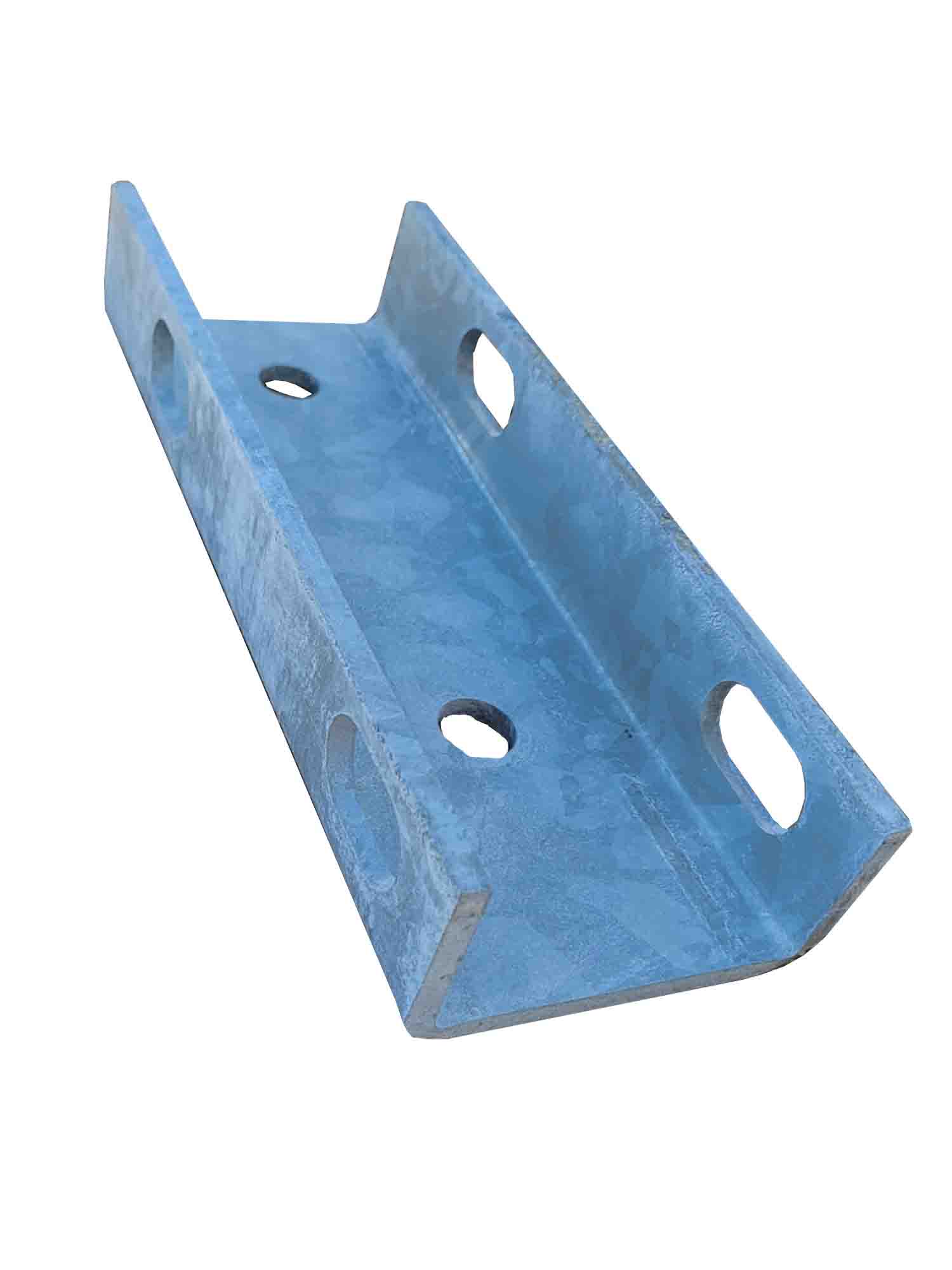

BP-SC | End Section Splice Channel | 2 |

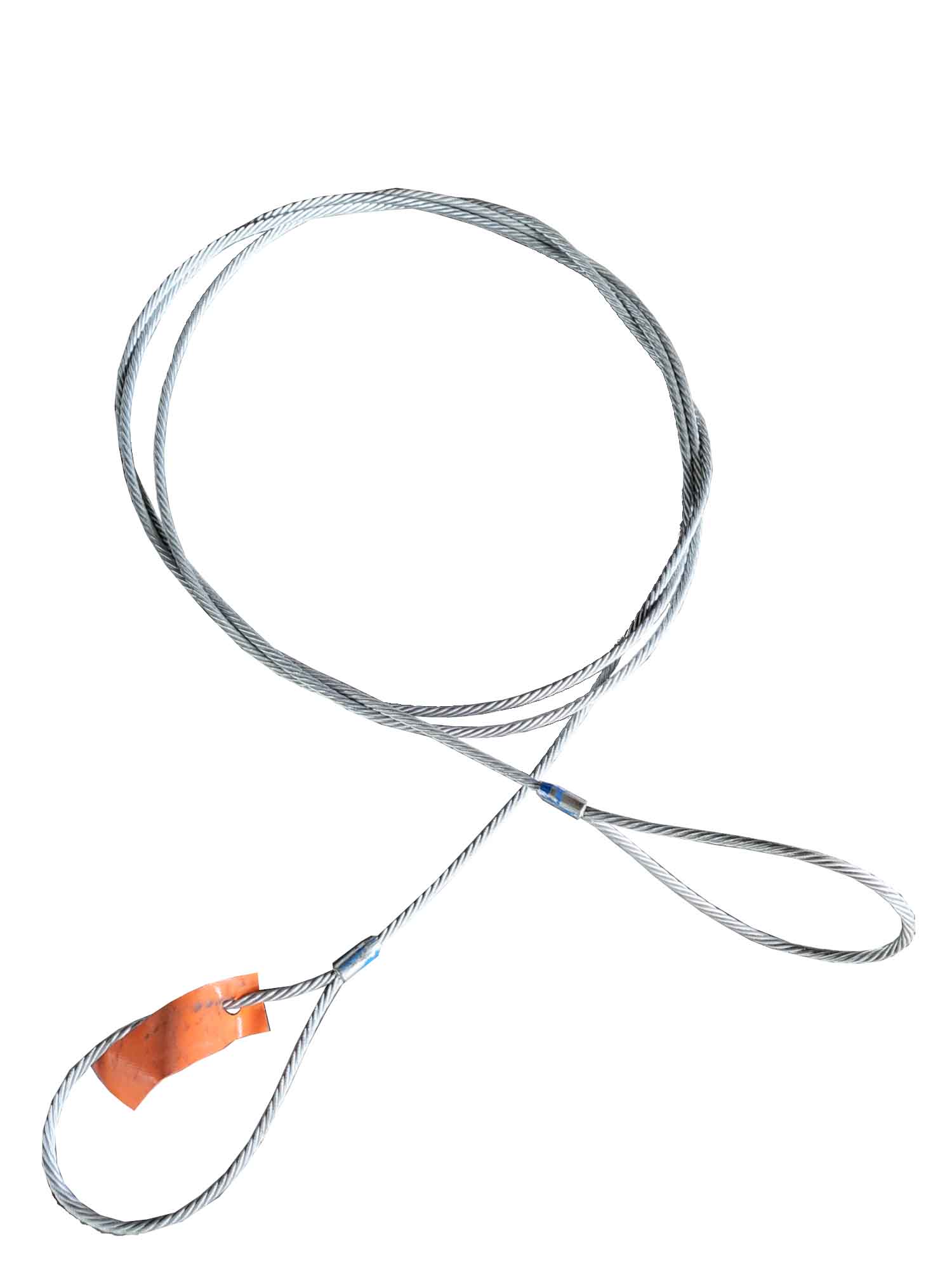

C3820 | 3/8 galvanized cable x 20′ | 1 |
