DAT System
Categories:DAT System, Full Systems

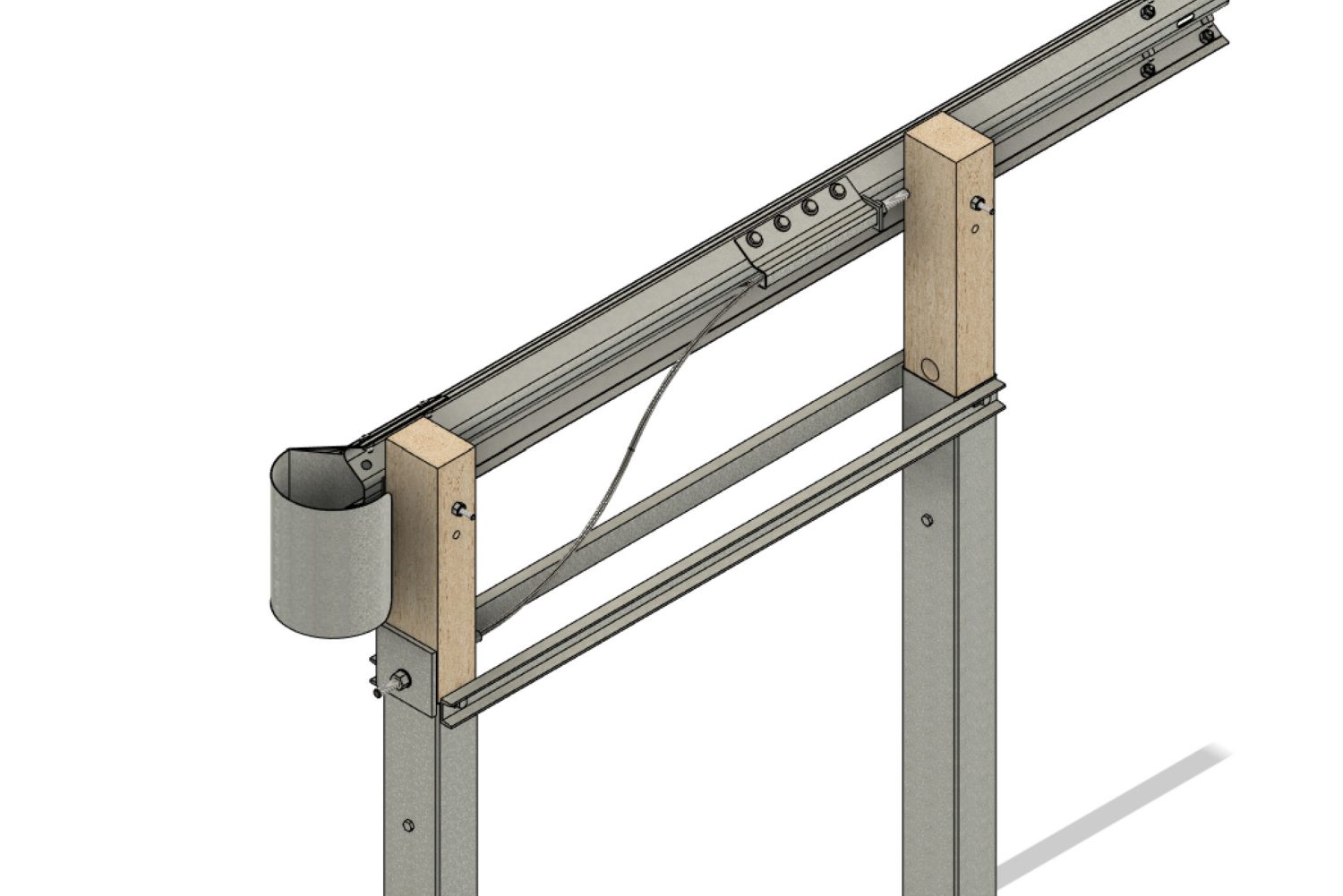

The Downstream Anchor Terminal (DAT) system is a non-proprietary design for anchoring 31” rail. It is not intended to be hit head on and therefore should only be used on the trailing end of a piece of guardrail.
WEIGHT: 439 lbs
Search Products

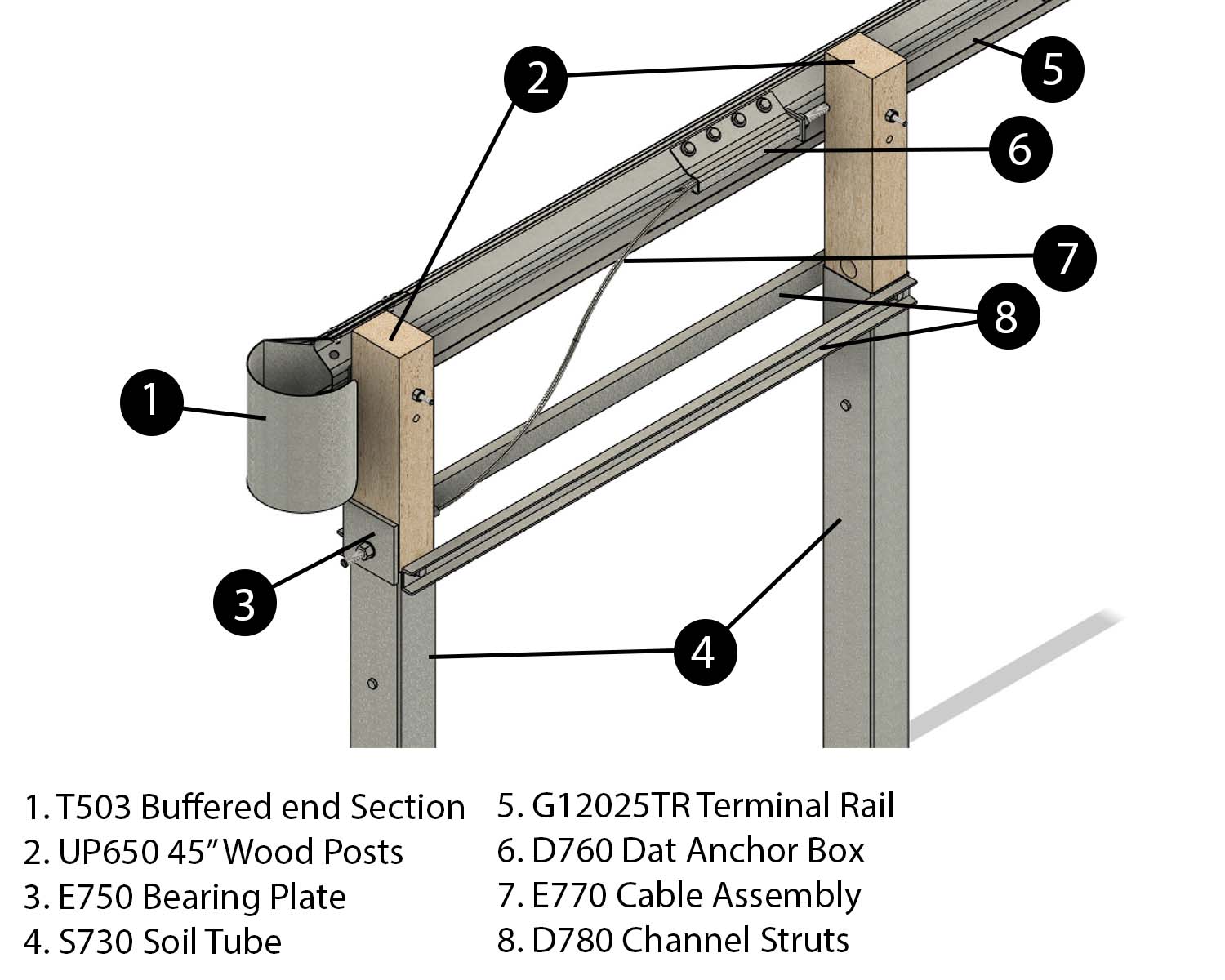

A DAT System Includes:
Item#: | Description: | Quantity: |
S730![]() | SOIL TUBE 6′ | 2 |
UP650![]() | UNIVERSAL TIMBER POST 45″ | 2 |
G12025TR![]() | TERMINAL RAIL ELEMENT | 1 |

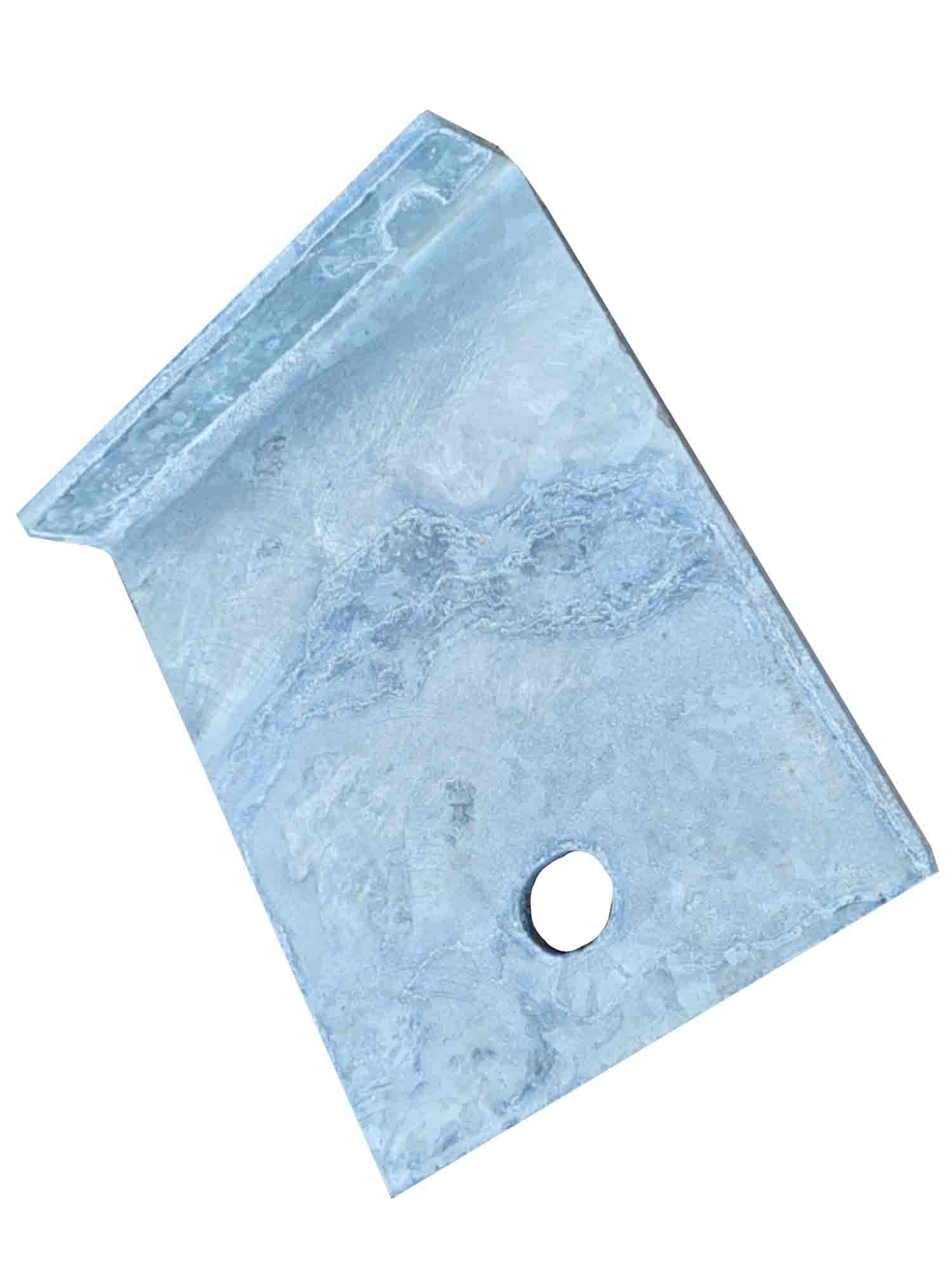

DAT-SB![]() | SHELF ANGLE BRACKET | 1 |
E740![]() | PIPE SLEEVE | 1 |
E750![]() | BEARING PLATE | 1 |
D760![]() | CABLE ANCHOR BRACKET | 1 |
E770![]() | CABLE ASSEMBLY | 1 |

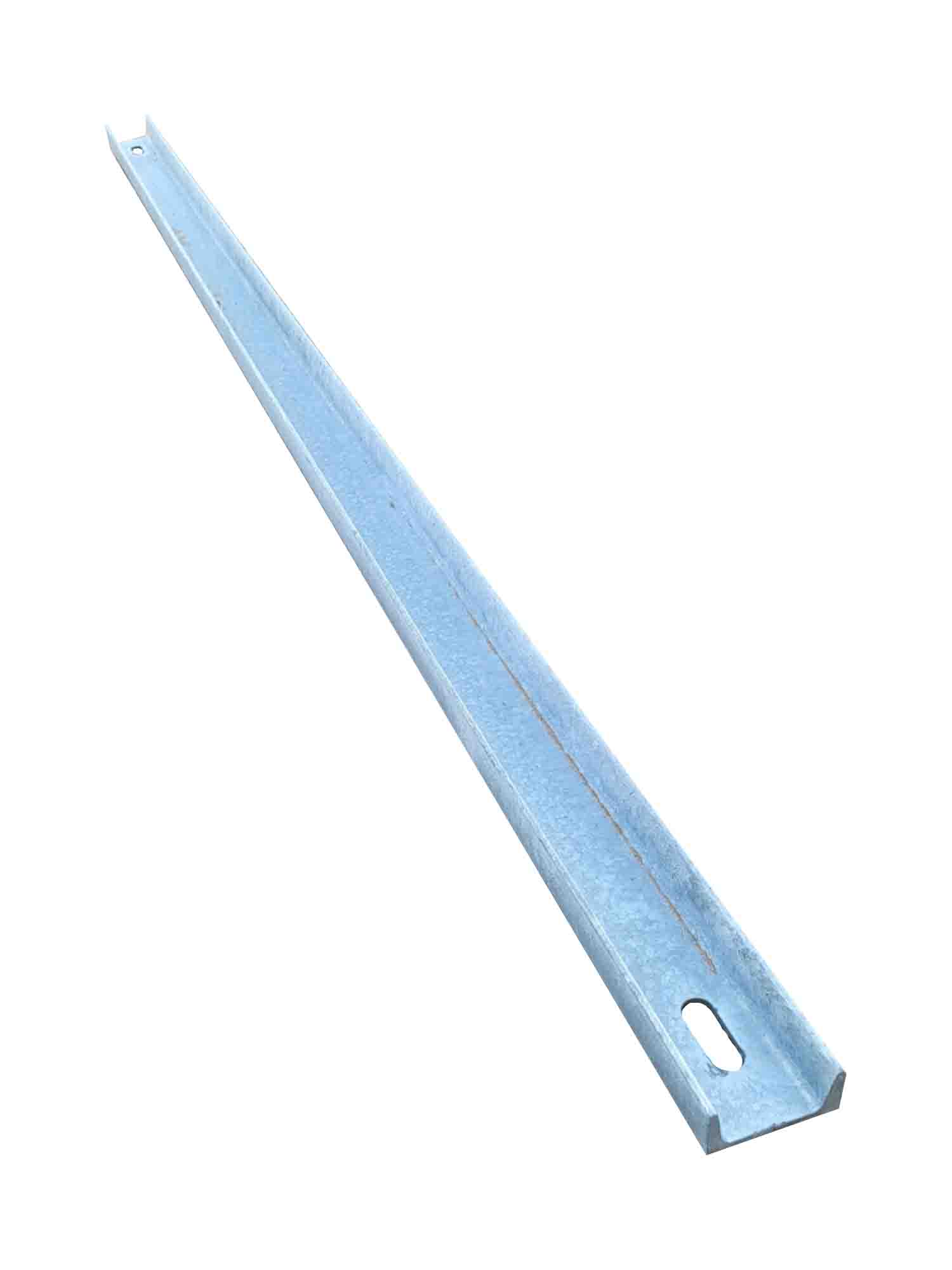

D780![]() | CHANNEL STRUT | 2 |

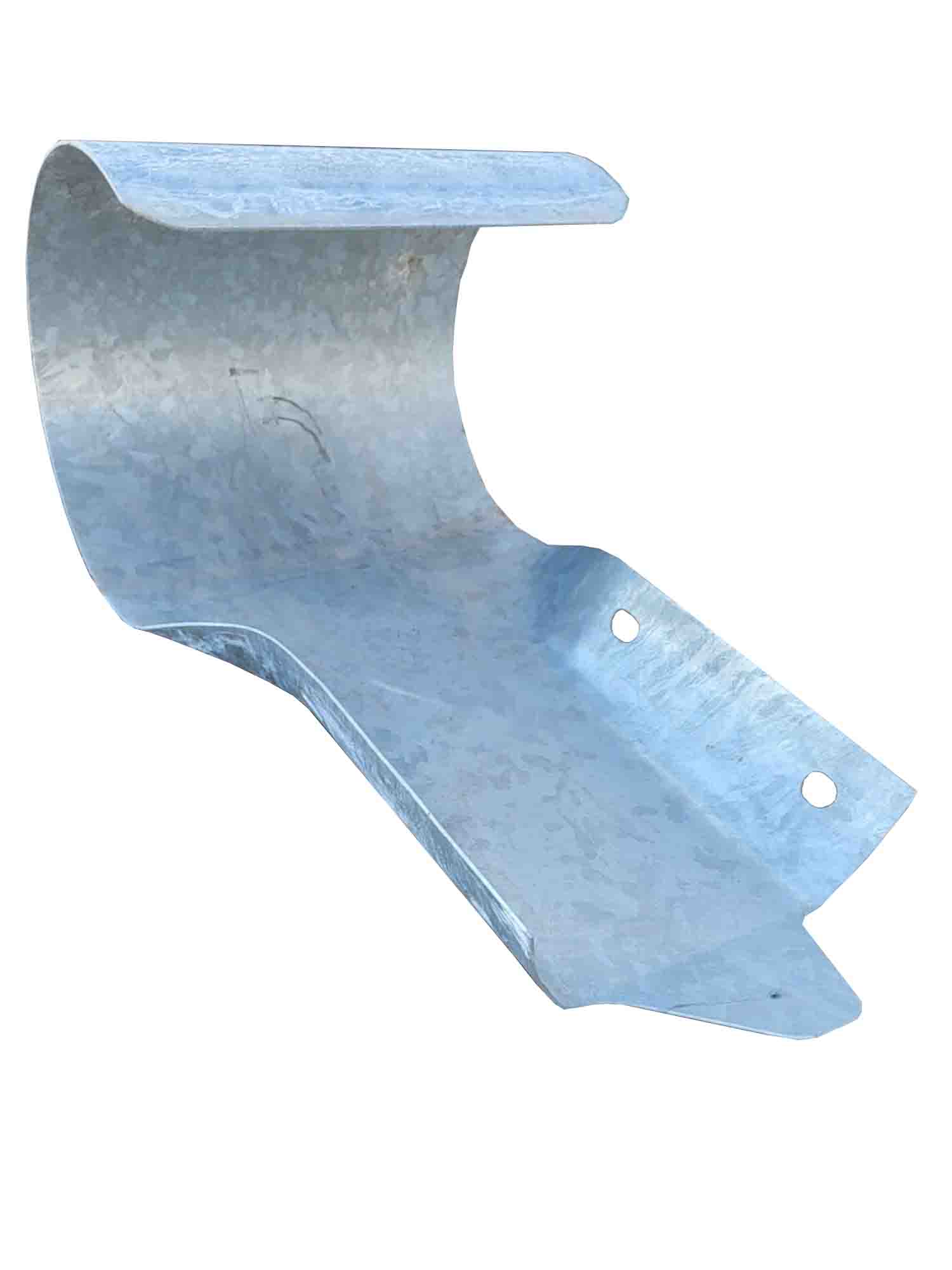

T503![]() | BUFFER END SECTION | 1 |
Hardware: | ||
B580122![]() | 5/8″ x 1 1/4″ HGR SPLICE BOLT | 12 |
B580204![]() | 5/8″ X 2″ HEX HD. BOLT | 8 |
B580754![]() | 5/8″ x 7 1/2″ HEX HD. BOLT | 2 |
B581004![]() | 5/8″ X 10″ HEX HD BOLT | 2 |
B581002![]() | 5/8″ x 10″ HGR POST BOLT | 2 |
N050![]() | 5/8 HGR NUTS | 26 |
W050![]() | 5/8 WASHERS | 16 |
N100A![]() | 1″ NUTS | 2 |
W100A![]() | 1″ WASHERS | 2 |
