The SKT-350 28″ Type 2 System includes:
| Item#: | Description: | Quantity: |
MS3000 | SKT IMPACT HEAD | 1 |
E3151 | OBJECT MARKER – ( 18″ x 18″ ) | 1 |
SF1305 | GUARDRAIL 12/25/6′ 3″ SKT Panel | 1 |
G1209 | GUARDRAIL 12/25/3′ 1/2″ | 1 |
S730 | STEEL TUBE – 6″ x 8″ x 1/8″ x 6′-0″ | 2 |
E740 | PIPE SLEEVE – 2″ STD. PIPE x 5 1/2″ | 1 |
E750 | BEARING PLATE – 5/8″ x 8″ x 8″ | 1 |
S760 | CABLE ANCHOR BOX (SKT) | 1 |

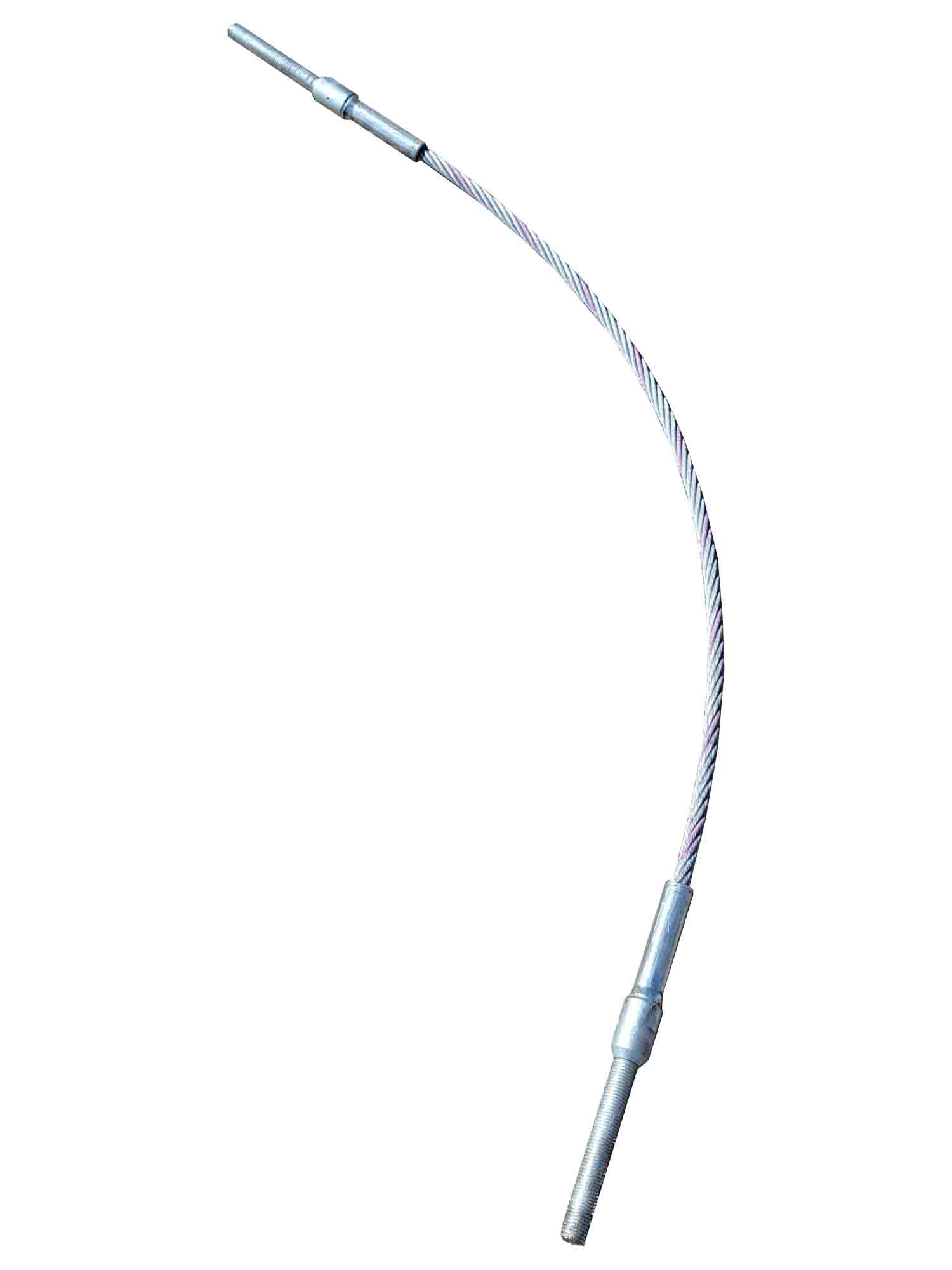

E770 | CABLE ASSEMBLY | 1 |
E780 | GROUNDING STRUT | 1 |
UP650 | WOOD POSTS – 5 1/2″ x 7 1/2″ x 45″ | 2 |
UP671 | WOOD CRT POSTS – 6″ x 8″ x 6′-0″ | 6 |
P675 | WOOD BLOCKOUTS – 6″ x 8″ x 14″ | 6 |
| Hardware: | ||
B580122 | 5/8″ x 1 1/4″ HGR SPLICE BOLT | 16 |
B580754 | 5/8″ x 7 1/2″ HEX. HD. BOLT | 4 |
B581004 | 5/8″ x 10″ HEX. HD. BOLT | 4 |
B581002 | 5/8″ x 10″ HGR POST BOLT | 1 |
B581802 | 5/8″ x 18″ HGR POST BOLT | 6 |
N050 | 5/8″ HGR. Nut | 39 |
W050 | 5/8″ WASHERS | 15 |
N100A | 1″ HEX NUT ( ANCHOR CABLE ) | 2 |
W100A | 1″ WASHER ( ANCHOR CABLE ) | 2 |
E350 | 3/8″ x 3″ LAG SCREW | 2 |
CBH | Bag of Shoulder Bolts (8 bolts,8 nuts, 8 washers) | 1 |
CT-100ST | STEEL CABLE TIE | 1 |
