SKT-350 Hinged Breakaway Post System

Category:

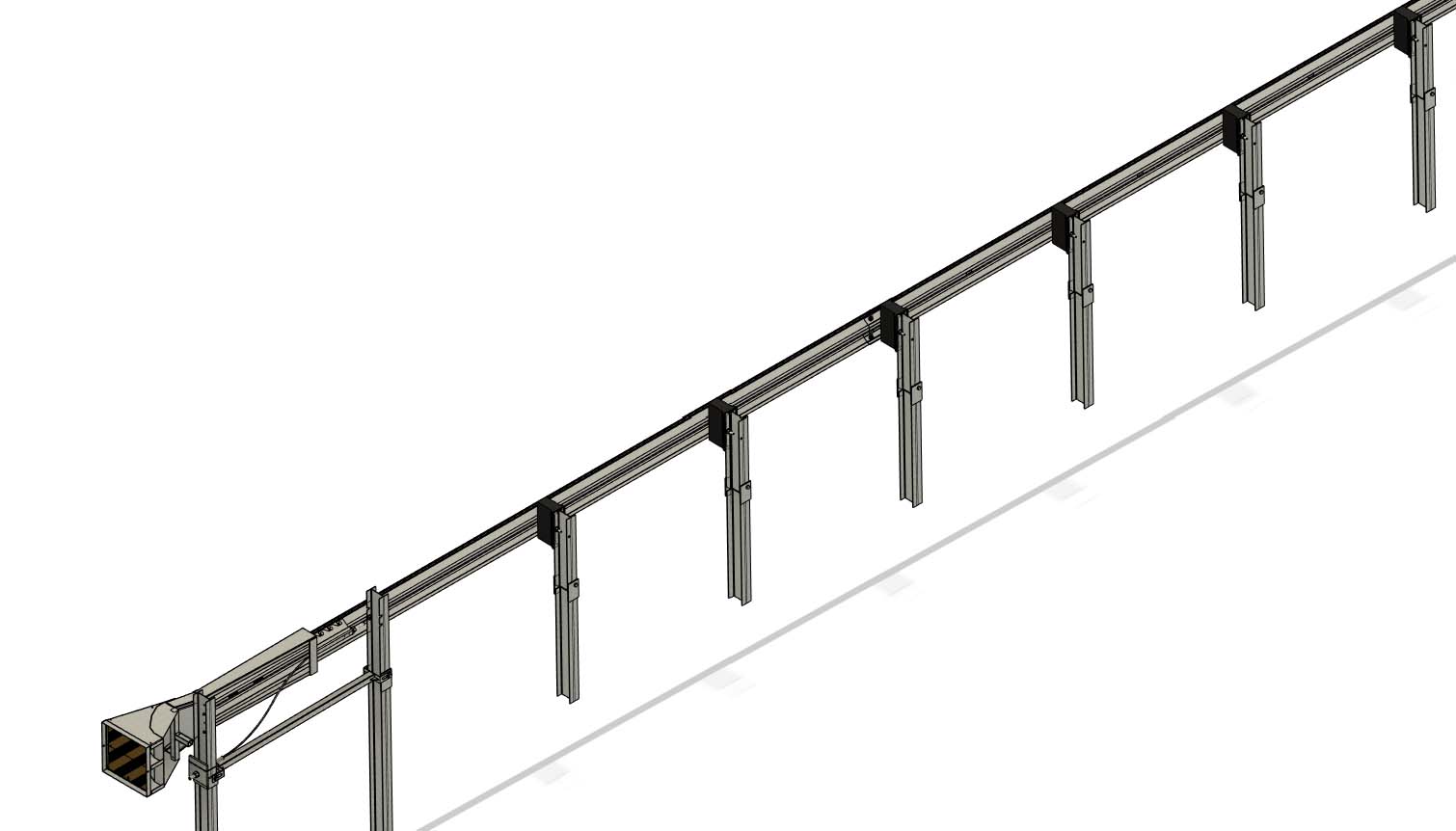

SKT-350 50′ Hinged Breakaway Post System (28″ Height)

WEIGHT: 1250.2 lbs

Back to SKT-350 Systems

Order SKT-350 System Parts

Order SKT-350 System Hardware

Search Products

The SKT-350 Hinged Breakaway Post System includes:

Item#:Description:Quantity:
MS3000SKT IMPACT HEAD1
E3151OBJECT MARKER – ( 18″ x 18″ )1
SF1305GUARDRAIL 12/25/6′ 3″ SKT Panel1
G1209GUARDRAIL 12/25/3′ 1/2″1
E750BEARING PLATE – 5/8″ x 8″ x 8″1
S760CABLE ANCHOR BOX (SKT)1
E770CABLE ASSEMBLY1
S785GROUNDING STRUT FOR HINGE POST1

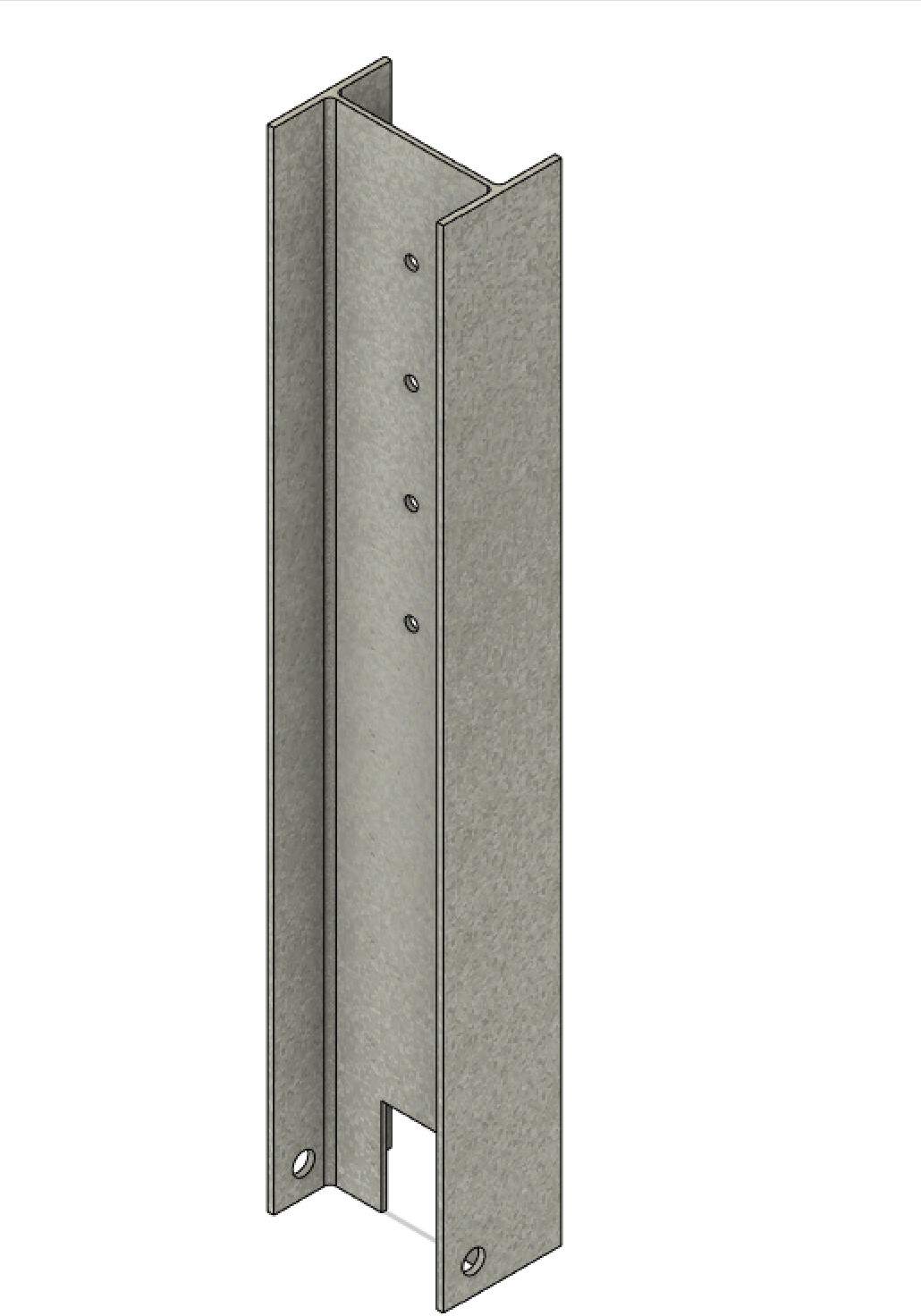

UHP1AHINGE POST #1 UPPER1

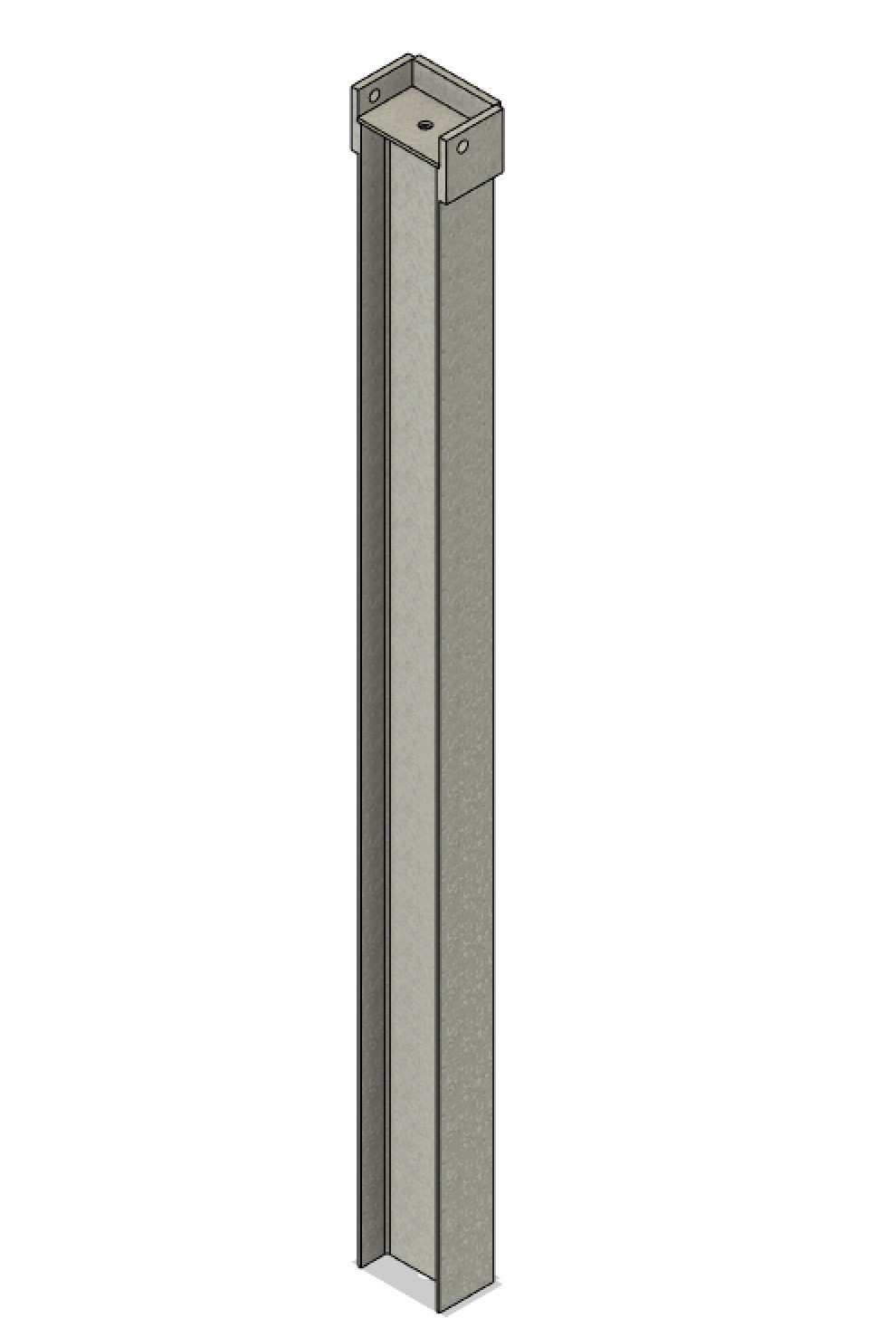

HP1BHINGE POST #1 LOWER1
UHP2AUNIVERSAL HINGE POST #2 UPPER1
HP2BHINGE POST #2 LOWER1

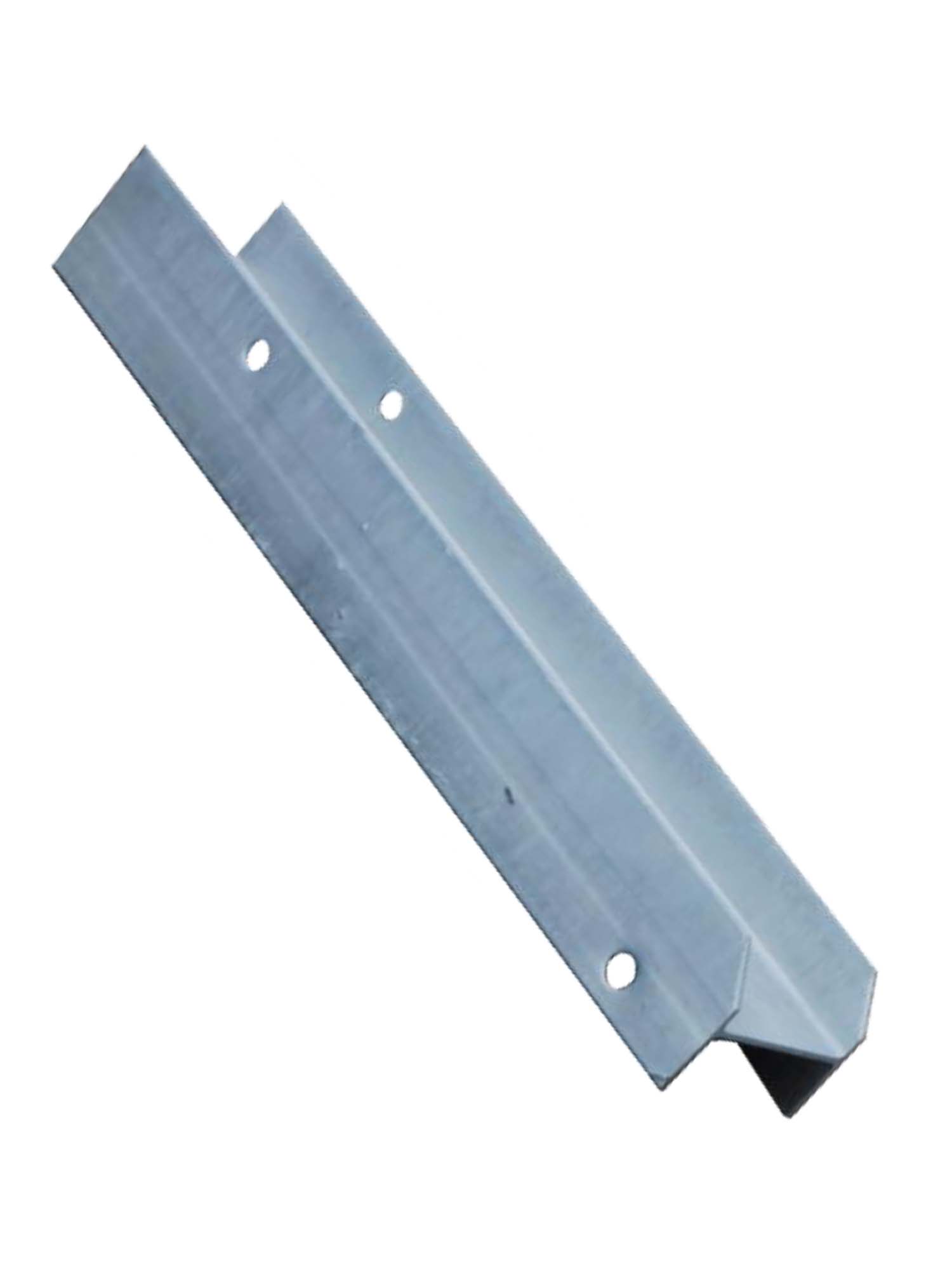

HP3AHINGE POST #3 UPPER6
HP3BHINGE POST #3 LOWER6
CBSP-14COMPOSITE PLOCK FOR STEEL POST6
Hardware:
B5801225/8″ x 1 1/4″ HGR SPLICE BOLT17
B580904A5/8″ x  9″ HEX. HD. BOLT GR. 51
B5810025/8″ x 10″  HGR POST BOLT6
B340854A3/4″ x 8 1/2″ HEX HEAD BOLT GR. 57

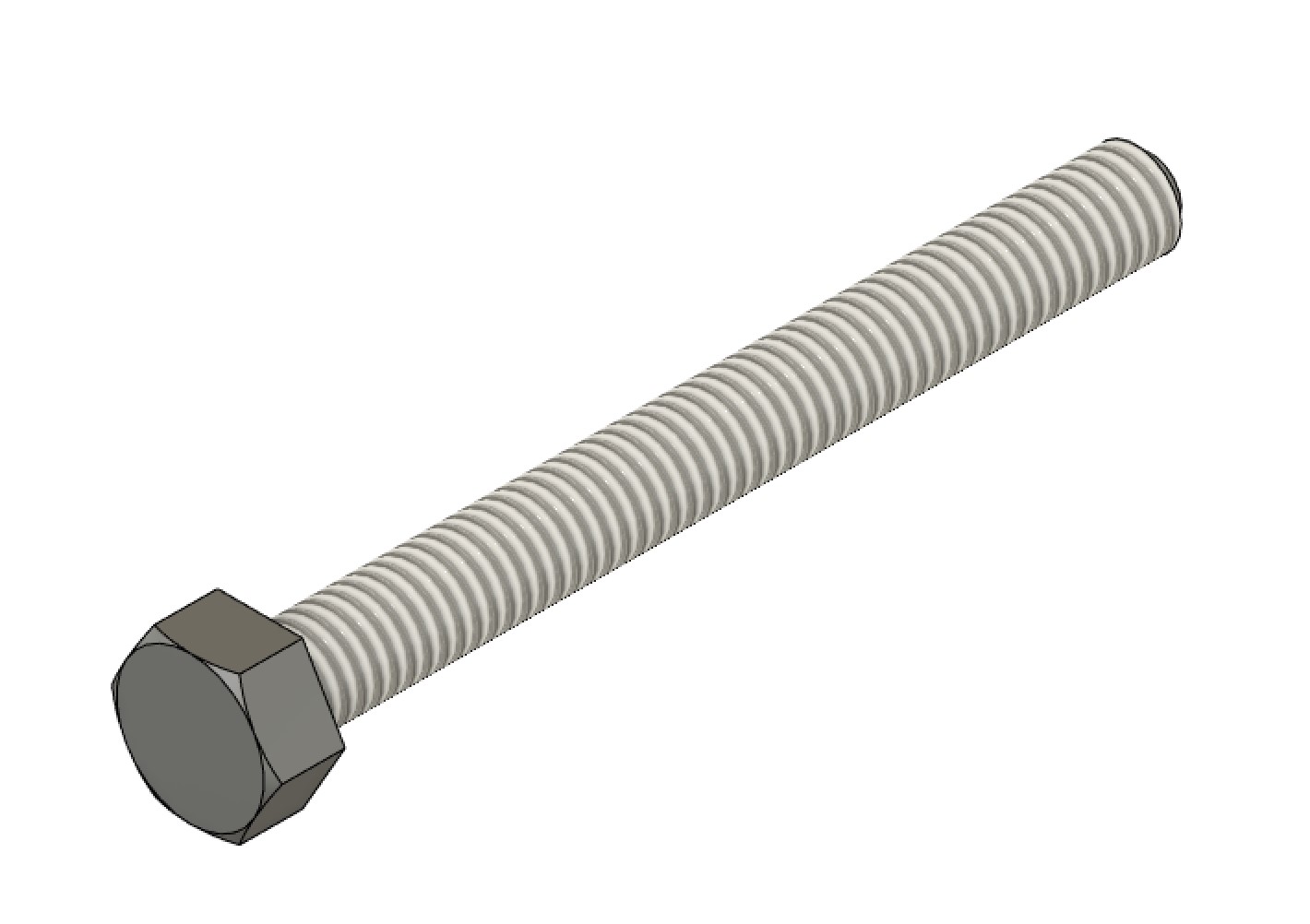

B35160304A5/16″ x 3″ HEX HEAD BOLT GR. 52
N0505/8″ HGR. NUT23
N0555/8″ HEX NUT1
W0505/8″ WASHERS9
N0303/4″ HEX NUT7

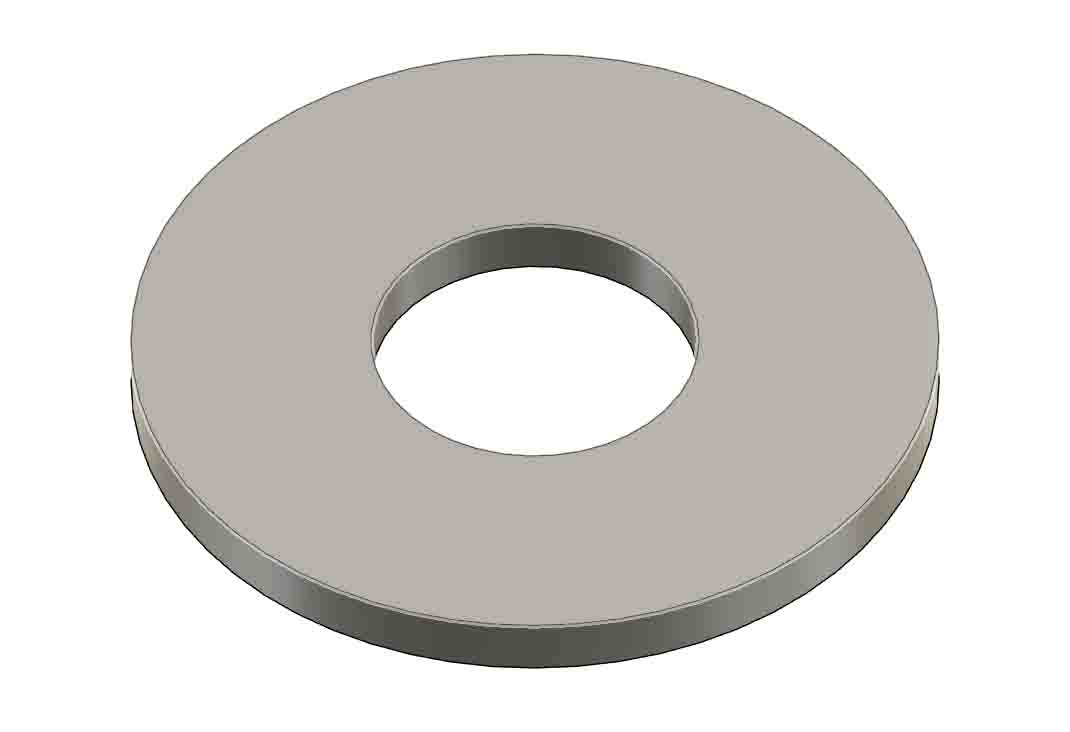

W0303/4″ WASHER2
N05165/16 HEX NUTS2
W05165/16 WASHERS4
N100A1″ HEX NUT ( ANCHOR CABLE )2
W100A1″ WASHER ( ANCHOR CABLE )2
CBHBag of Shoulder Bolts (8 bolts,8 nuts, 8 washers)1
CT-100STSTEEL CABLE TIE1
