SKT-350
The SKT (Sequential Kinking Terminal) is an energy absorbing tangent terminal.
The SKT is 50′-0″ long and has 8 breakaway posts. NCHRP-350 APPROVED!
During head-on impacts, the SKT head slides over the W-Beam guardrail. The rail is sequentially kinked or bent as it moves through the head absorbing energy. The kinked guardrail exits the head safely and the vehicle is brought to a controlled stop. When impacted along the side within the length-of-need, the SKT functions like guardrail. The errant vehicle is safely redirected back toward tests original travel path.

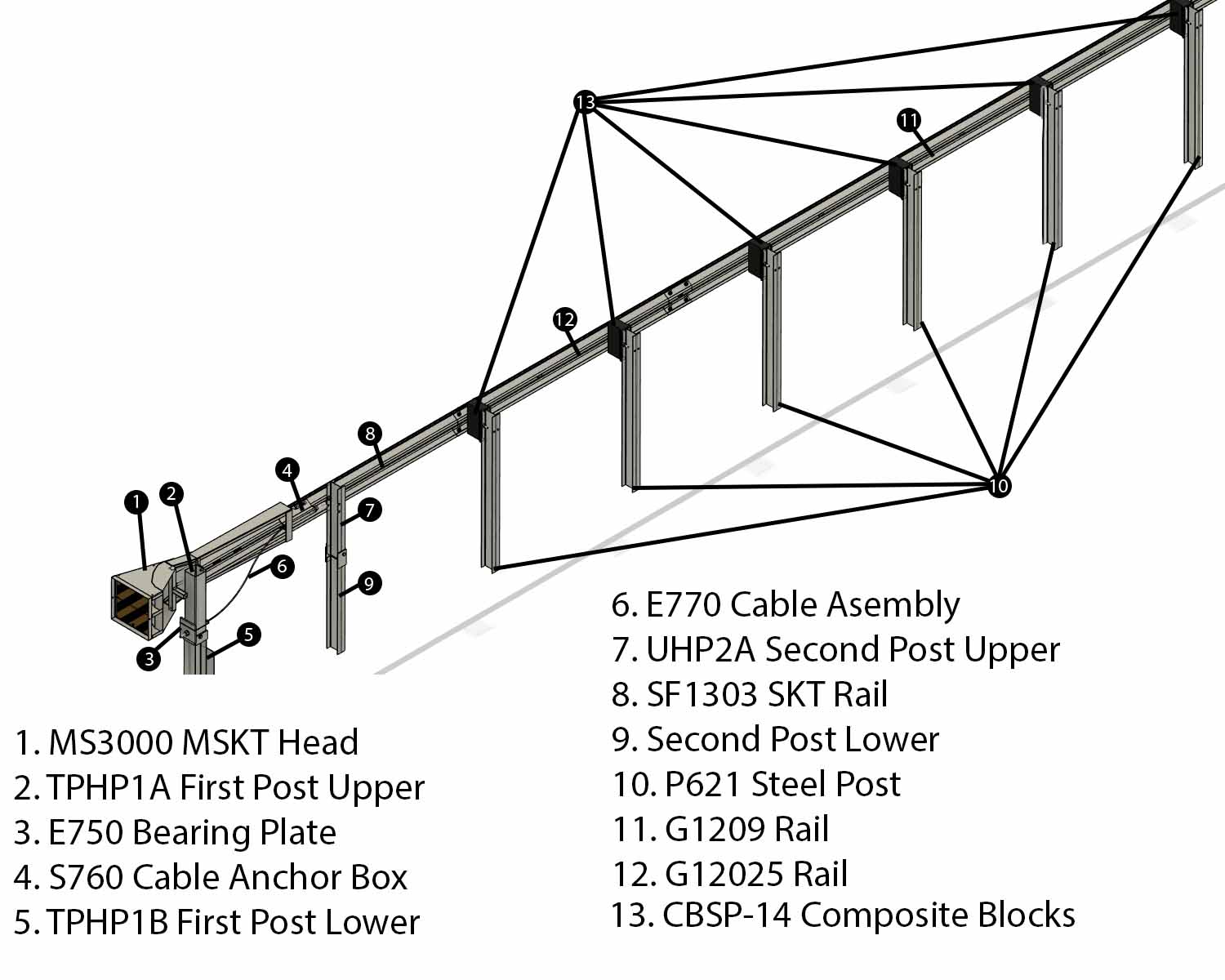

Post options include steel posts or timber posts.

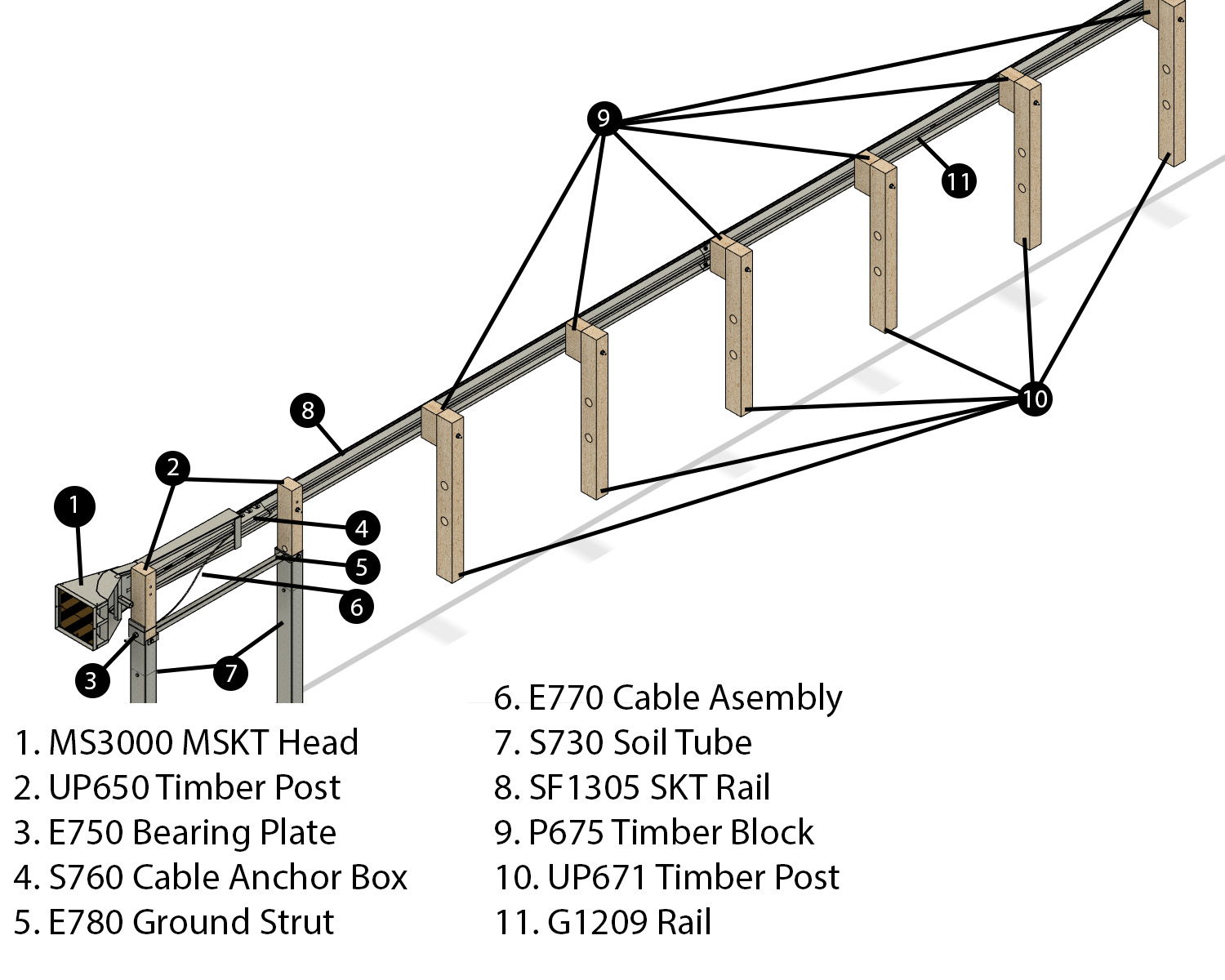

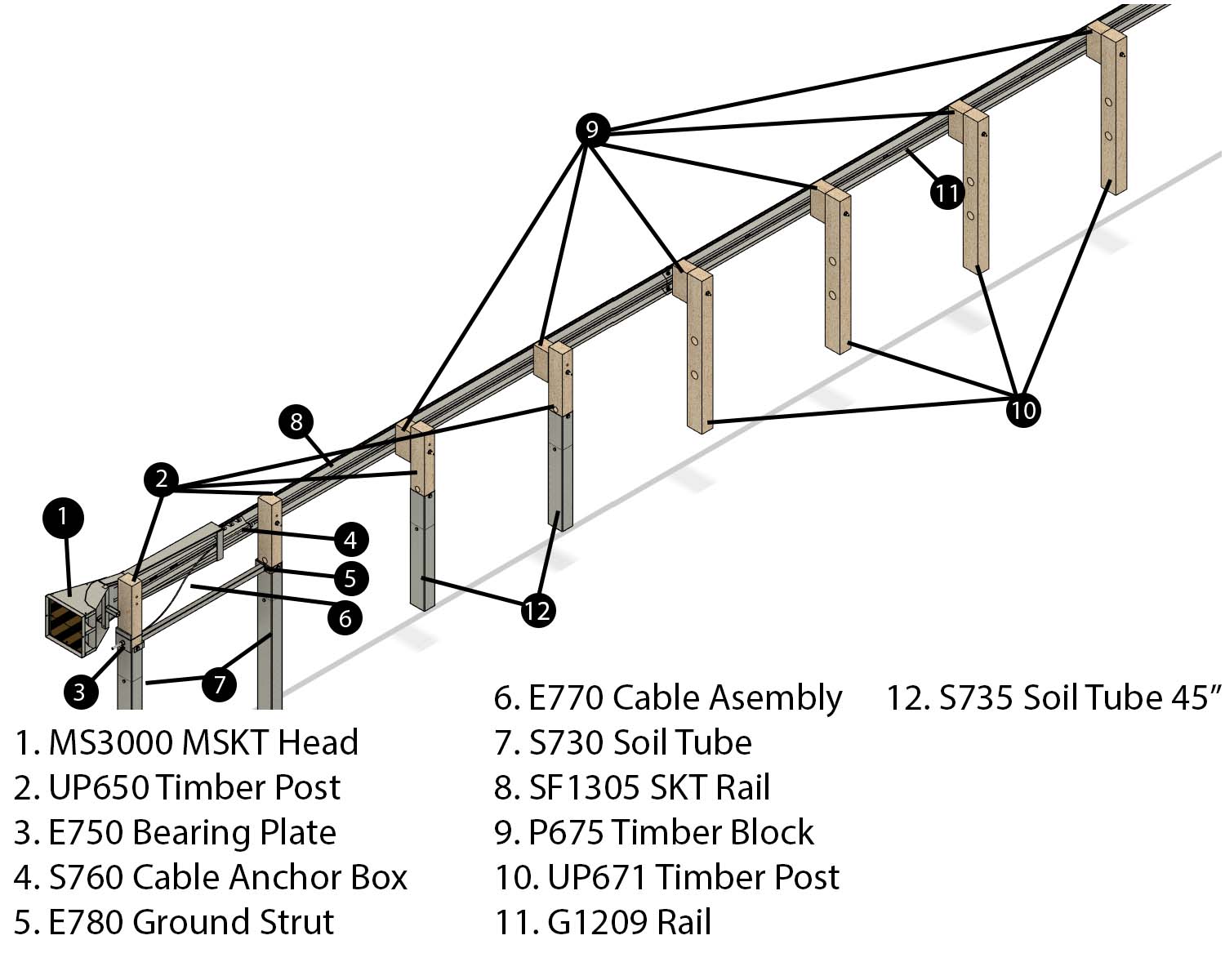

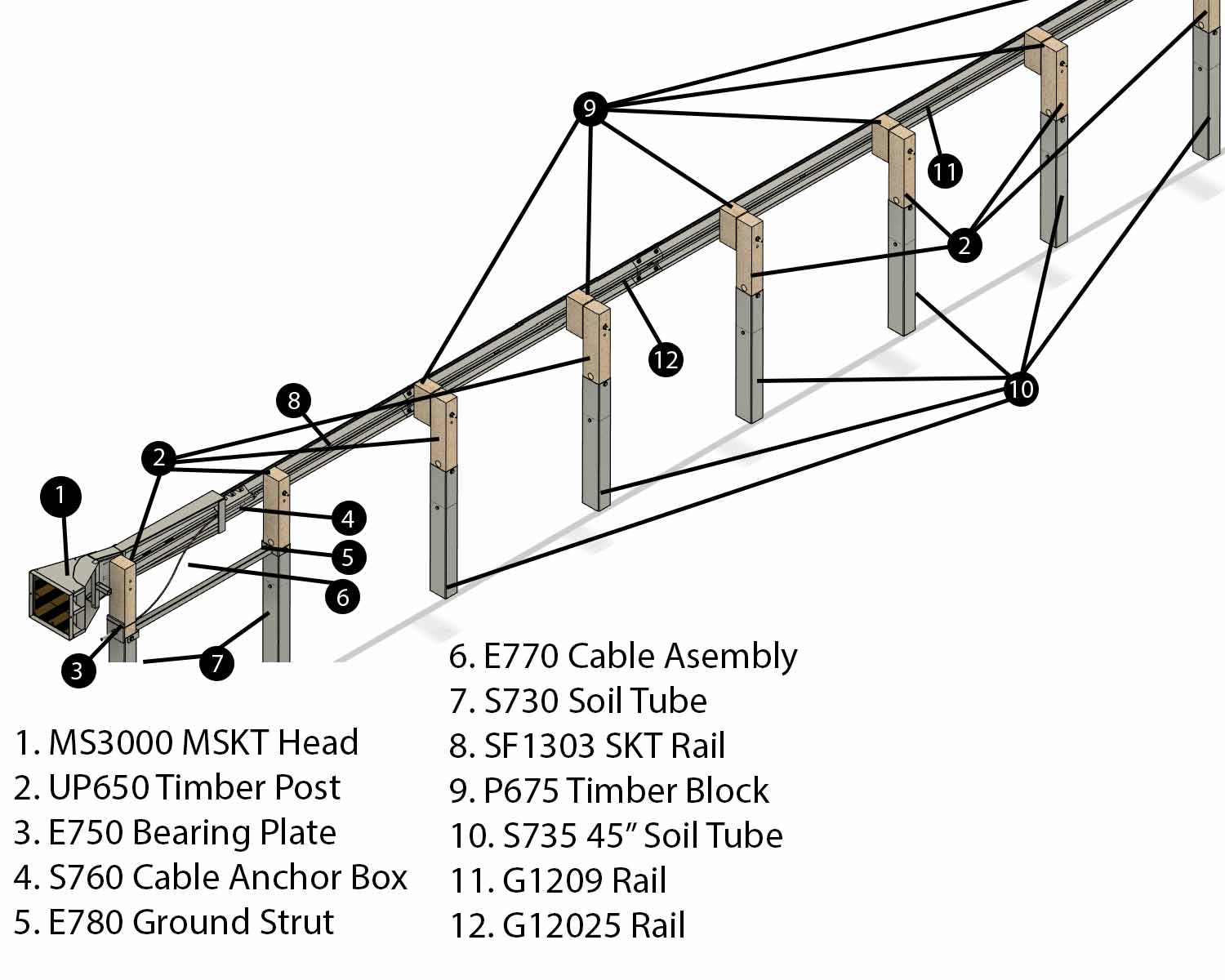

Timber post options include: Type I (2 tubes), Type II (4 tubes), or Type III (8 tubes).
The MSKT’s impact head can be used on existing in-place NCHRP 350 SKT systems for maintenance repairs. These systems will need to be maintained for many years to come. By being able to use the MSKT impact head for maintenance of both existing NCHRP 350 systems and new MASH installations, only the MSKT impact head will need to be inventoried. Please note, using a MSKT impact head on an older system does not make that system MASH compliant.
- About
- Product Guide PDF
- Product Diagrams
- Product Documentation
Benefits and Features
- Uses proven sequential kinking technology.
- Uses the same MSKT Impact head found on the MASH-MSKT system
- Available for both 28" and 31" rail heights.
- Steel of timber post options
- Has all posts spaced at 6′ 3″ centers
- DOT maintenance crews have the same familiar parts to work with
- Contractors have the same ease of installation to work with
- NCHRP 350 tested to level 2 and 3 speeds
Installation Manuals
SKT-SP Steel Post Install Manual
SKT Steel Hinged Post Install Manual
Drawings
SKT-SP Terminal TL-3 System Drawing (US)
SKT-SP Terminal TL-3 System Drawing (METRIC)
SKT Assembly Drawing for Hinged Post
FHWA Letters
6/10/1998 Foundation Tube and Blockout Options
8/27/1999 SKT & FLEAT Steel Post Approval
2/4/2000 SKT Test Level 2 Approval
3/23/2001 SKT Eliminating Soil Plates from Tubes 3-8
10/30/2002 SKT Hinged Steel Post Approval
7/14/2004 SKT LITE Shortened 37' 6" Long System w/ Wood or Steel Posts
Product Video
Product Parts
MS3000
E3151
SF1303
G12025
G1209
E750
S760
E770
UHP2A
HP2B
P621
S730
UP650
E740
SF1305
UP671
P675
S735
E780
S785
Product Hardware
CT-100 ST

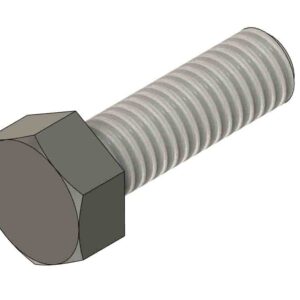

B5160104A
B580122
B580904A
B340854A
B581002
N0516
N050
N030
W0516
W050
N100A
W100A
CBH
B580754
B581004
N014
N055
W014
B140404A
